Features:
1.Metal
Gear Digital Servo:Equipped with Stainless Steel Gears, Full CNC
aluminium Shell, Less Noise, light weight.Dual ball bearings.Excellent
linearity, precision control.
2.Widely Use Digital Servo
Motor:35KG 25KG 20KG 15KG optional,the RC car steering servo compatible
with 1/8, 1/10, 1/12 Scale Clawer Truck, Arrma typhon,Traxxas rustler
4x4 vxl , scx10, kyosho inferno gt2 nitro car,Baja Car / Robot / Boat
and other remote control models.
3.Waterproof Servo:The
waterproof protection level is IP67,servo is 0.15-1m away from the water
surface for 60 minutes, and the product performance will not be
affected.
4.Controllable Angle Range:From 0 to 180 /270 degrees optional,meet your different needs.
5.High Speed RC Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g).

Description:
The
9imod Metal Gear Digital Servo is a high speed RC servo,it has large
torque and the waterproof protection level is IP67,adopt DC
motor.Compared with ordinary servo, the speed is much faster and the
reaction is also fast,high operation voltage range.
This is a good accessory for your RC Car Truck Crawler Boat Robot and DIY model toy!

Specifications:
Brand:9imod
Model:DS35MG,DS25MG,DS20MG,DS15MG optional
Control Angle:180°/ 270°optional
Color:Black
Gear Material:Metal Gear
Case Material:Full Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -8.4V
Storage Temperature Range: -30℃～80℃
Operation Temperature Range:-20C°~ +60C°
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1 optional
Circle:＞80000 times without load
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:DC motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Waterproof performance: IP67
Ball Bearing:2BB
Connector Wire Length: 300MM JR Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Yellow):S Single
Dimensions:40x20x40.50mm
Weight:78g (without servo horn)

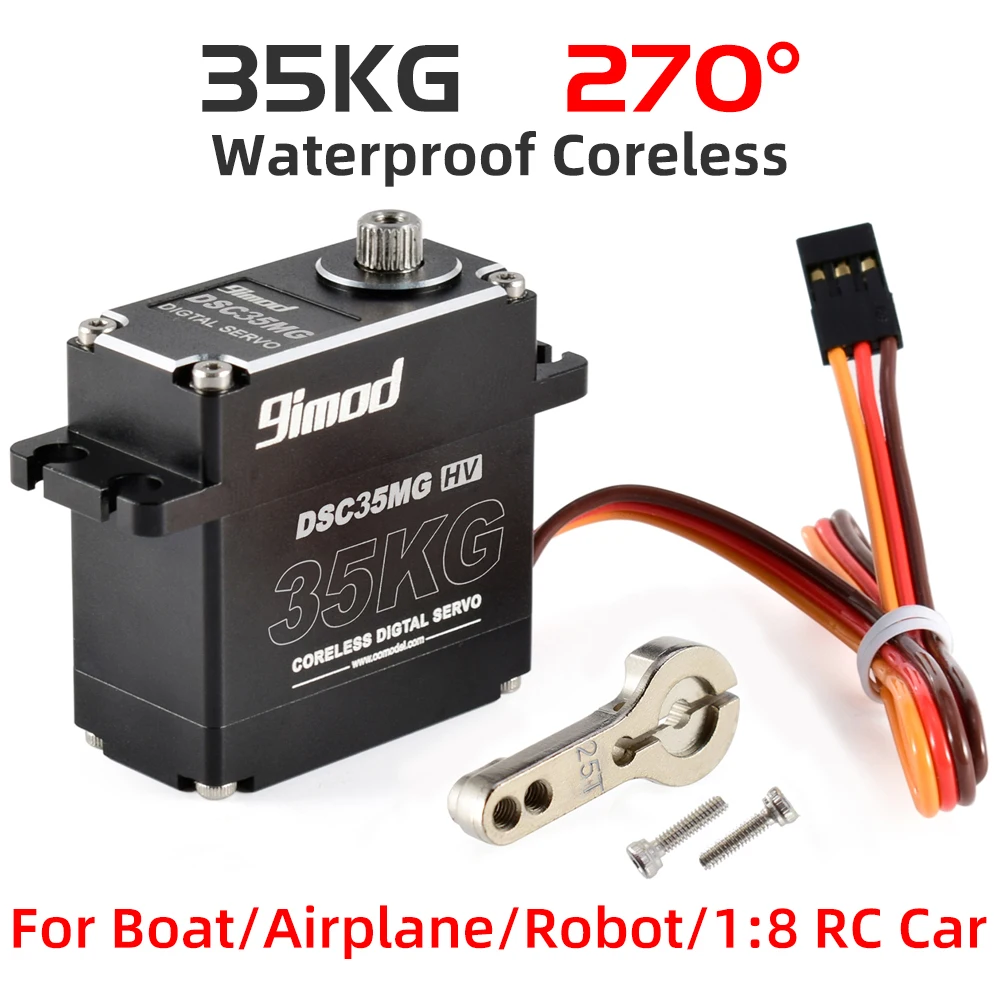

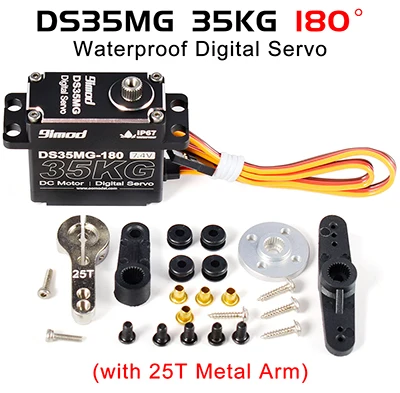

DS35MG
Test Voltage: 6V / 7.4V / 8.4V
Idle current(at stopped): 270mA@6V / 320mA@7.4V / 350mA@8.4V
Operating speed (at no load):0.12 sec/60°@6V; 0.14sec/60°@7.4V; 0.11sec/60°@8.4V
Standing Torque(at locked): 28kg-cm@6V; 31kg-cm@7.4V; 35kg-cm@8.4V
Running Current: 2.2A@6V; 2.8A@7.4V; 3.2A@8.4V
Dead band width :2uSec@6V;2uSec@7.4V

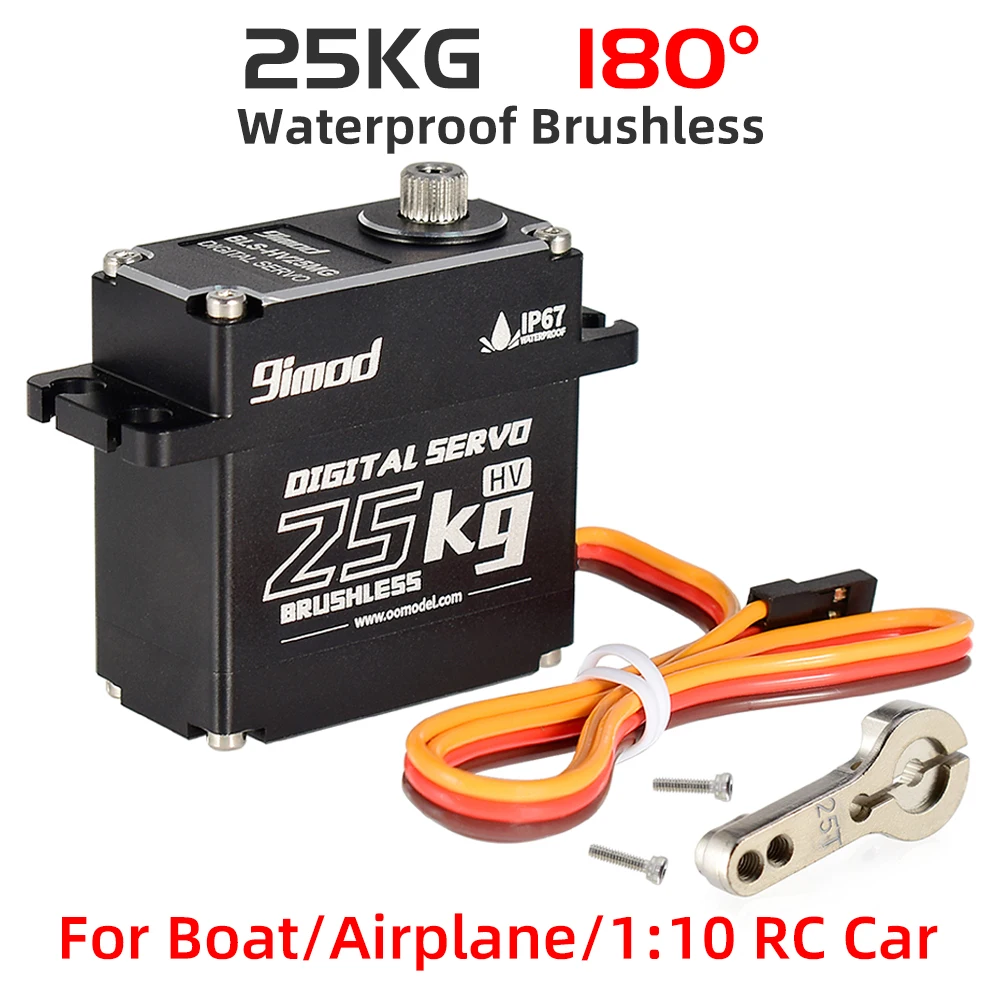

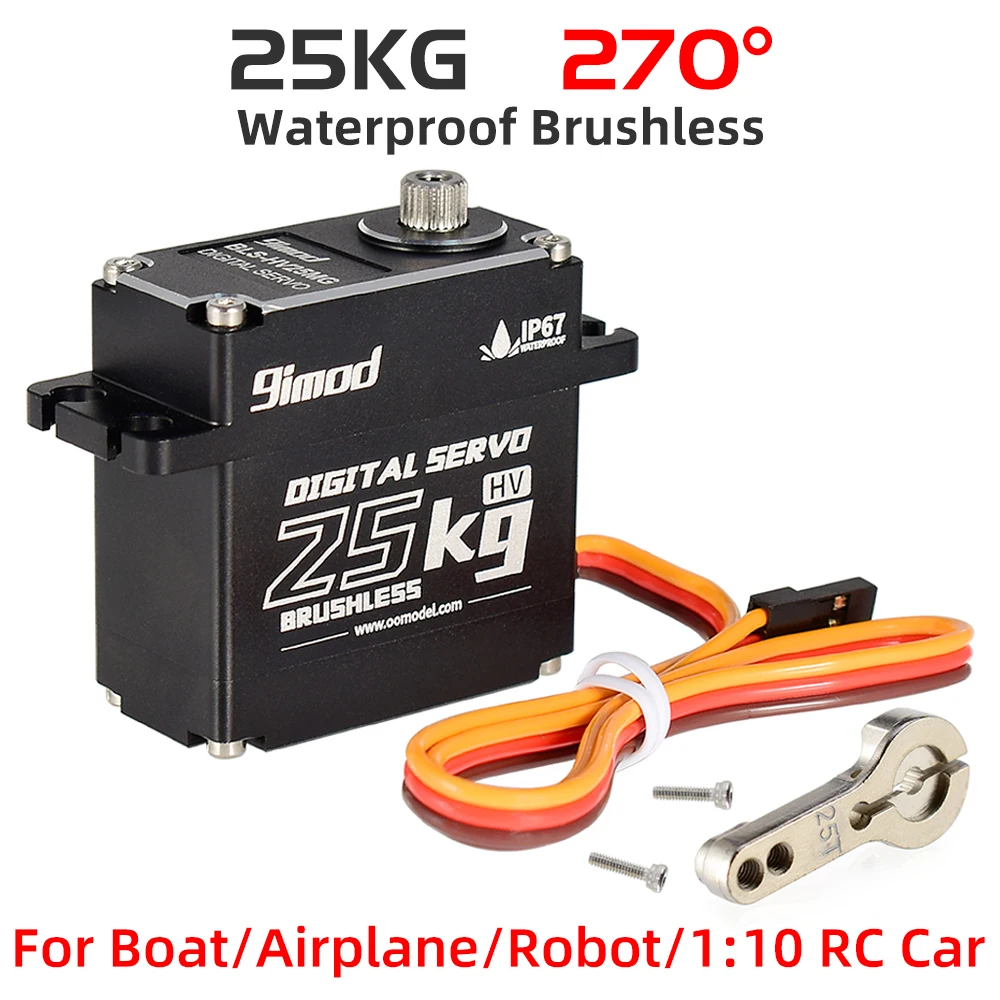

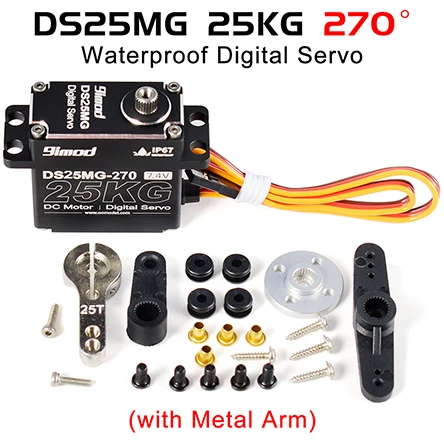

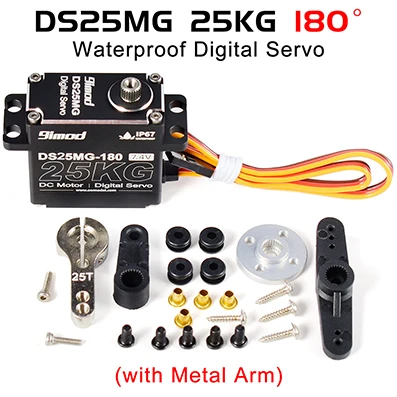

DS25MG
Test Voltage: 6V / 7.4V / 8.4V
Idle current(at stopped): 270mA@6V / 320mA@7.4V / 360mA@8.4V
Operating speed (at no load):0.13sec/60°@6V; 0.1sec/60°@7.4V; 0.08sec/60°@8.4V
Standing Torque (at locked): 18kg-cm@6V; 23kg-cm@7.4V; 25kg-cm@8.4V
Running Current: 2.2A@6V; 2.8A@7.4V; 3.2A@8.4V
Dead band width :1uSec@6V;1uSec@7.4V; 1uSec@8.4V

DS20MG
Test Voltage: 6V / 7.4V / 8.4V
Idle current(at stopped): 270mA@6V / 320mA@7.4V / 350mA@8.4V
Operating speed (at no load):0.12 sec/60°@6V; 0.09sec/60°@7.4V; 0.075sec/60°@8.4V
Standing Torque (at locked): 16kg-cm@6V; 18kg-cm@7.4V; 21kg-cm@8.4V
Running Current: 2.2A@6V; 2.8A@7.4V; 3.2A@8.4V
Dead band width :1uSec@6V;1uSec@7.4V; 1uSec@8.4V

DS15MG
Test Voltage: 5V / 6V / 8.4V
Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@8.4V
Operating speed (at no load):0.16sec/60°@5V; 0.13sec/60°@6V; 0.11sec/60°@8.4V
Stall torque (at locked): 11.2kg-cm@5V; 13.3kg-cm@6V; 15.2kg-cm@8.4V
Running Current: 1.9A@5V; 2.3A@6V; 2.8A@8.4V
Dead band width :2uSec@5V;2uSec@6V; 2uSec@8.4V

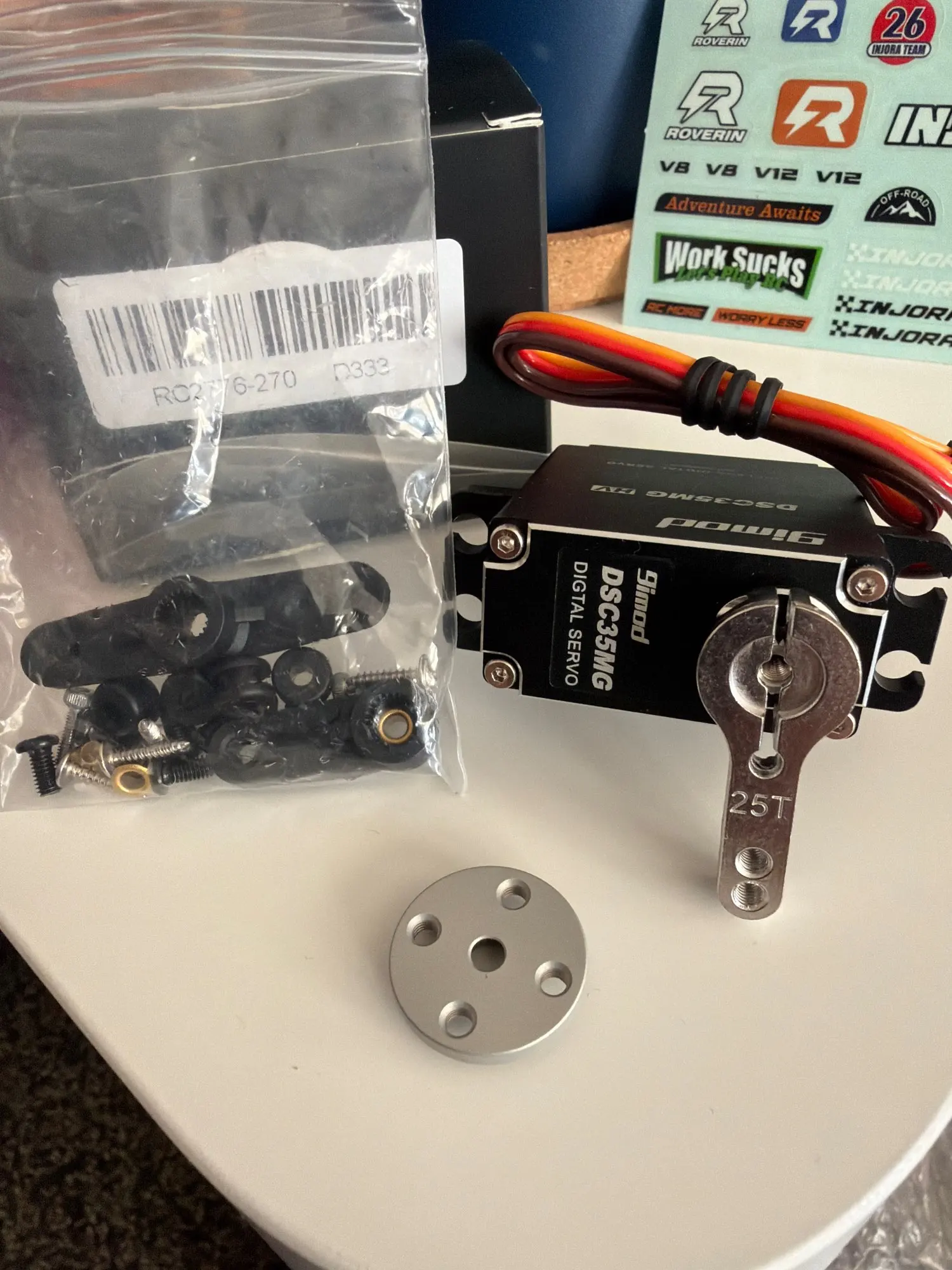

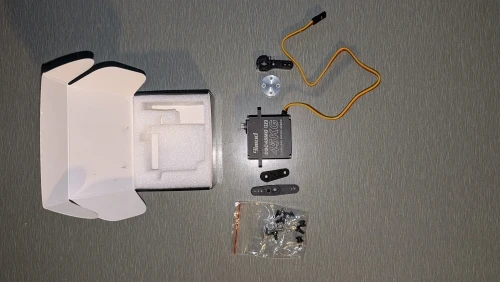

Package included:
1 x Waterproof Digital Servo

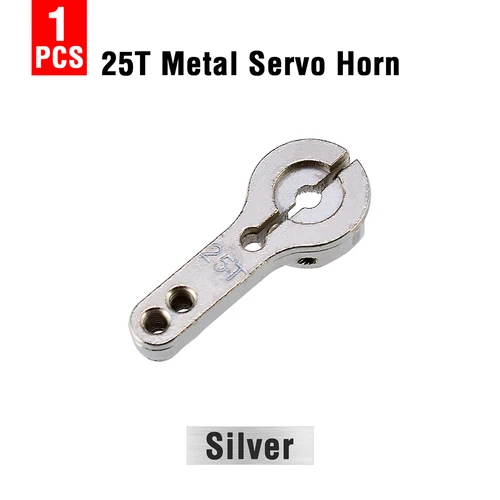

1 x 25T Adjustable metal servo arm
1 x 25T Round Type Servo Horn
one set of accessories
