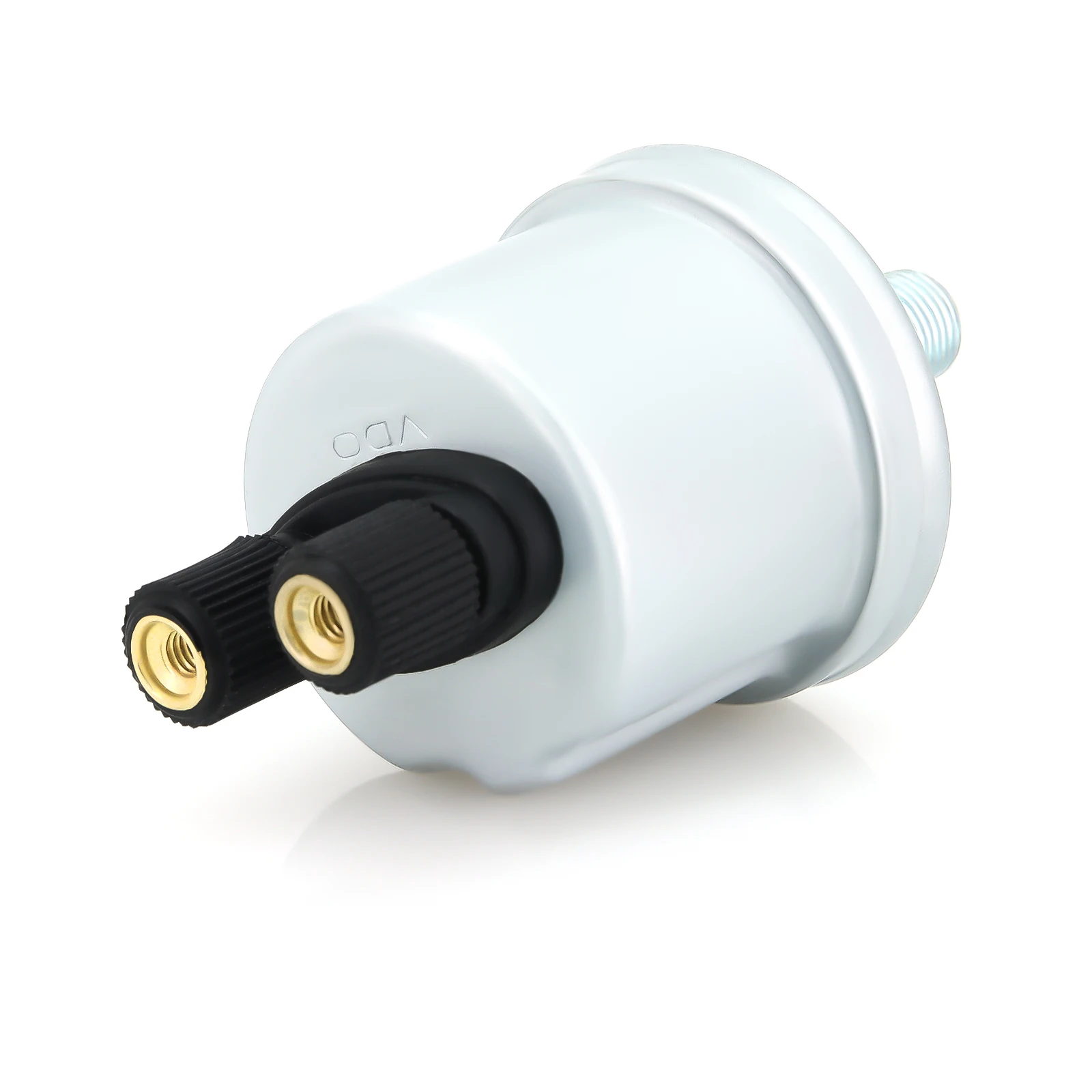

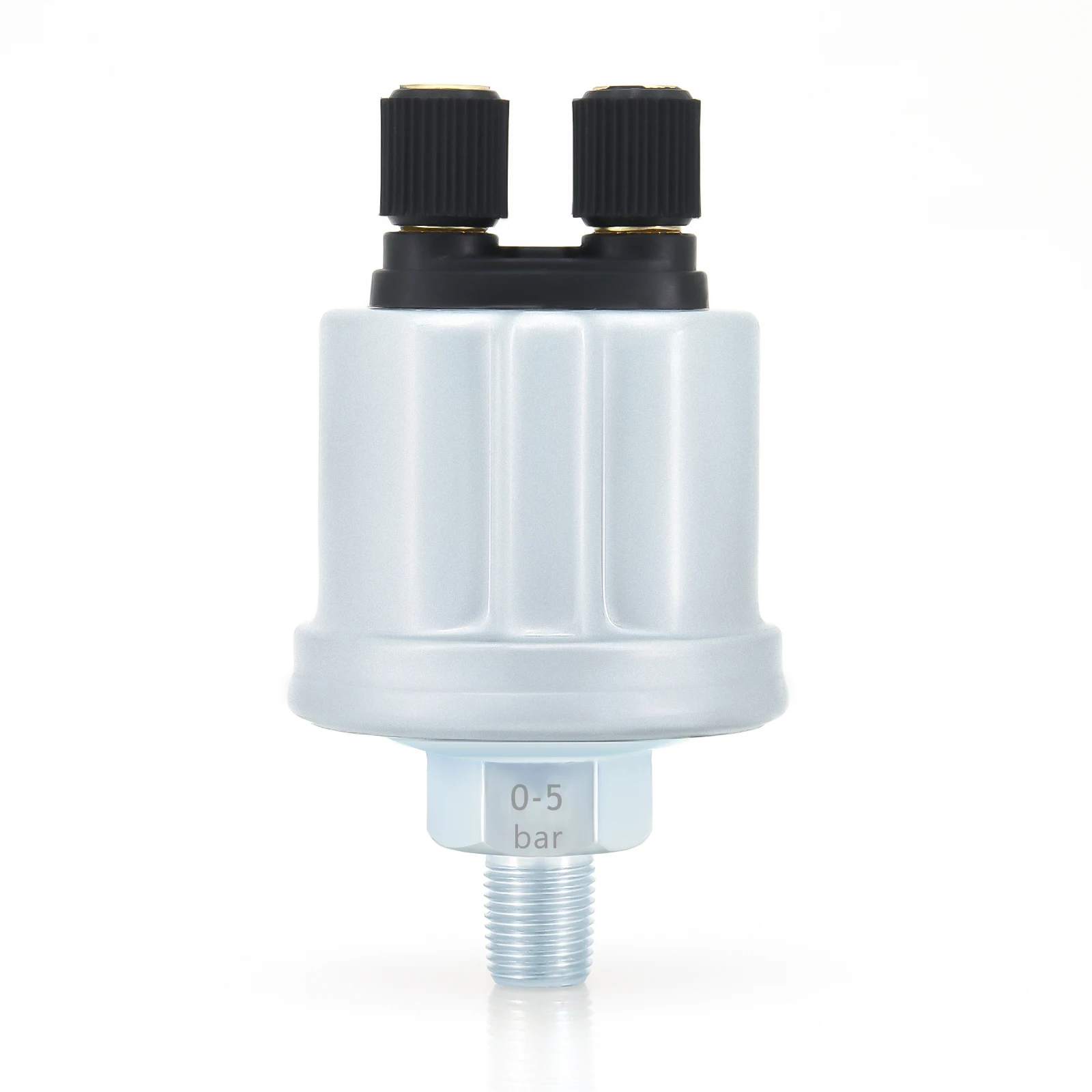

AD 범용 오일 압력 센서 1/8NPT 10mm 0-5BAR 0-10BAR 오일 프레스 게이지 송신기 스위치 송신 장치 디젤 발전기 부품

Wiring instructions:

- G:connect to oil pressure meter of the positive

- WK:connect to the alarm light of the positive

Features:

- Meeting the installation thread 1/8NPT, Output signal 10-180Ω, Range 0-1.0MPA can be replaced.

- Two plugs inside the plug, one is connected to the instrument, the other is to negative.

- This one is dual function. The housing is a common negative electrode. One to the instrument, the other to alarm.

- WK is alarm terminal, connect to alarm light

- G is the signal terminal of parameter display , connect to the instrument display

- Shell is common negative (ground)

Description

- Size: 1/8NPT

- Working principle:

- Working range: 0-10bars / 0-5bar

- Alarm temperature: 0.8 ± 0.2bars.

- When oil pressure value is 0-10bars, the alarm switch will open, the alarm light will turn off.

- When oil pressure value is 0.8 ± 0.2bars, the alarm switch will close, the alarm light will turn on.

Package Included:

1 X Oil Pressure Sensor

Wholesale and drop shipping are both welcomed

For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.

For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

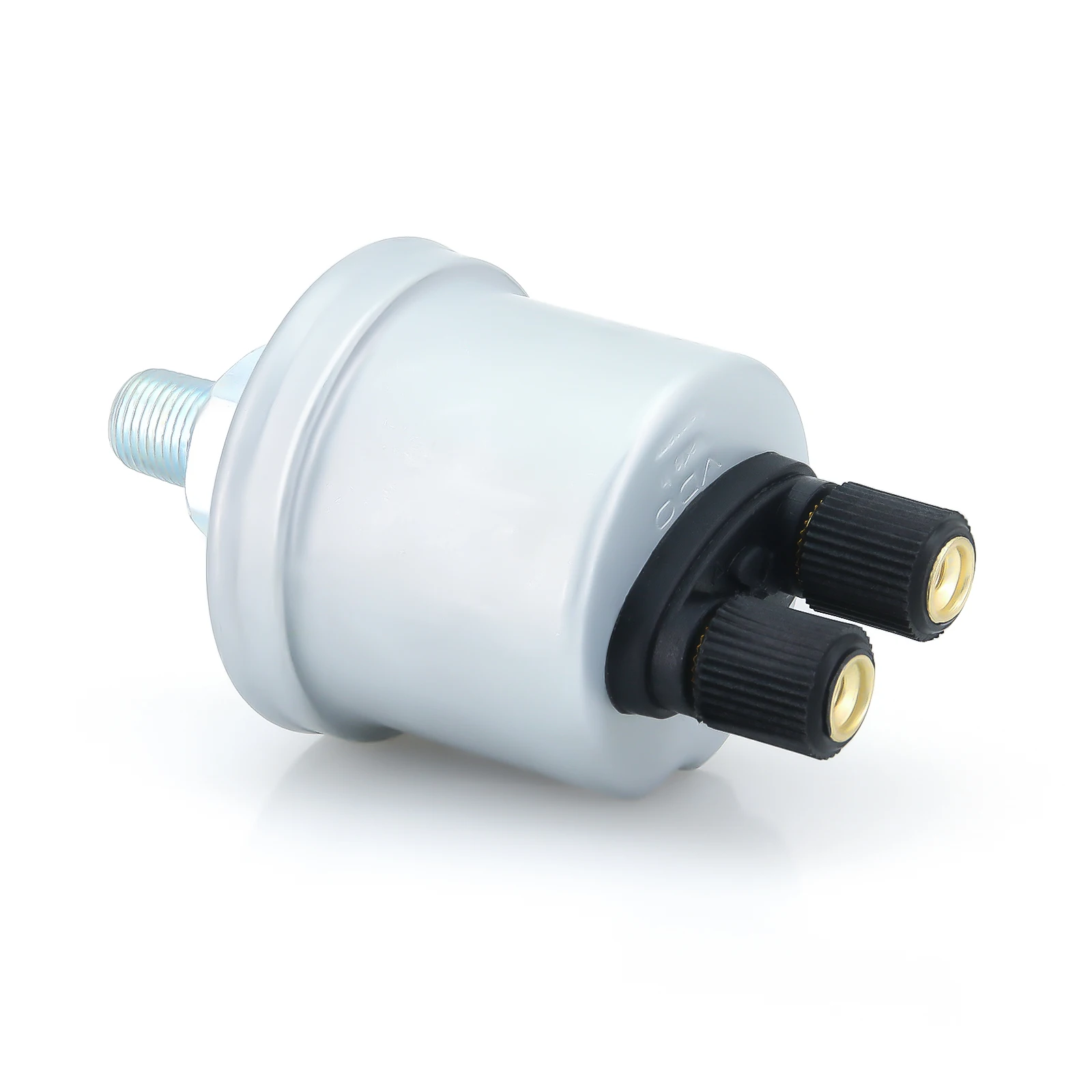

Oil pressure sensor
