Tuya Wifi 스마트 커튼 스위치 컨트롤러 블라인드 롤링 셔터 RF 433MHz 스마트 라이프 APP 원격 음성 제어 Alexa Google 홈

Features:

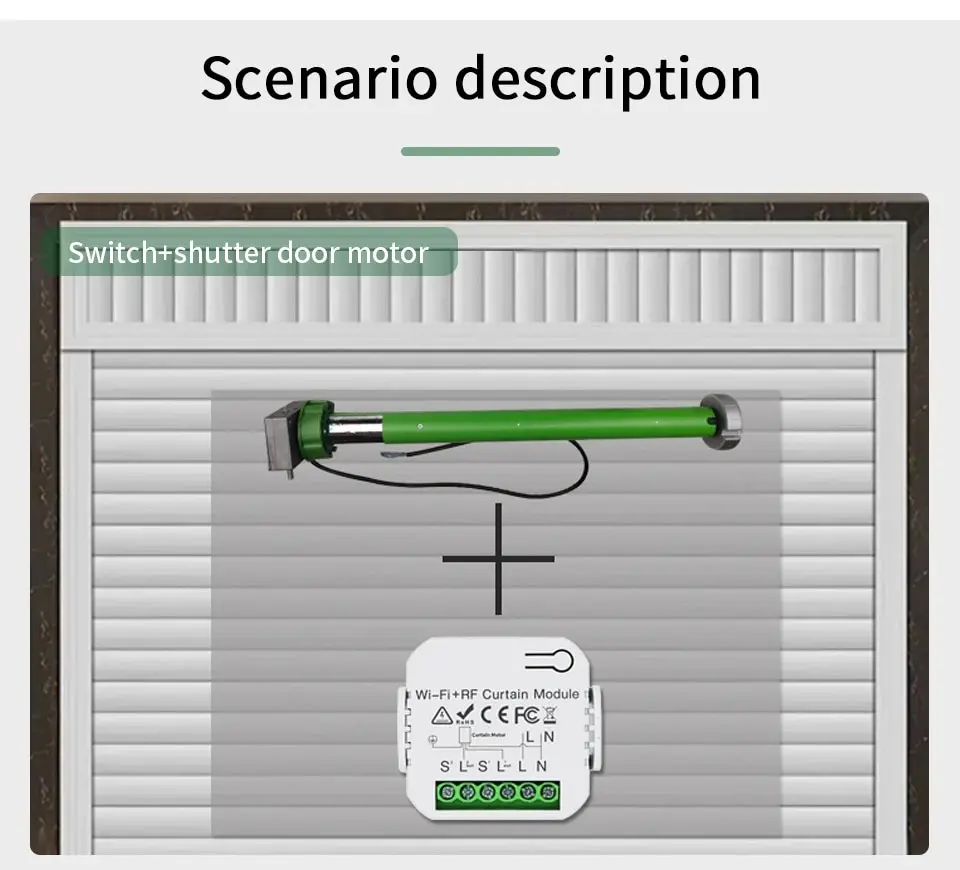

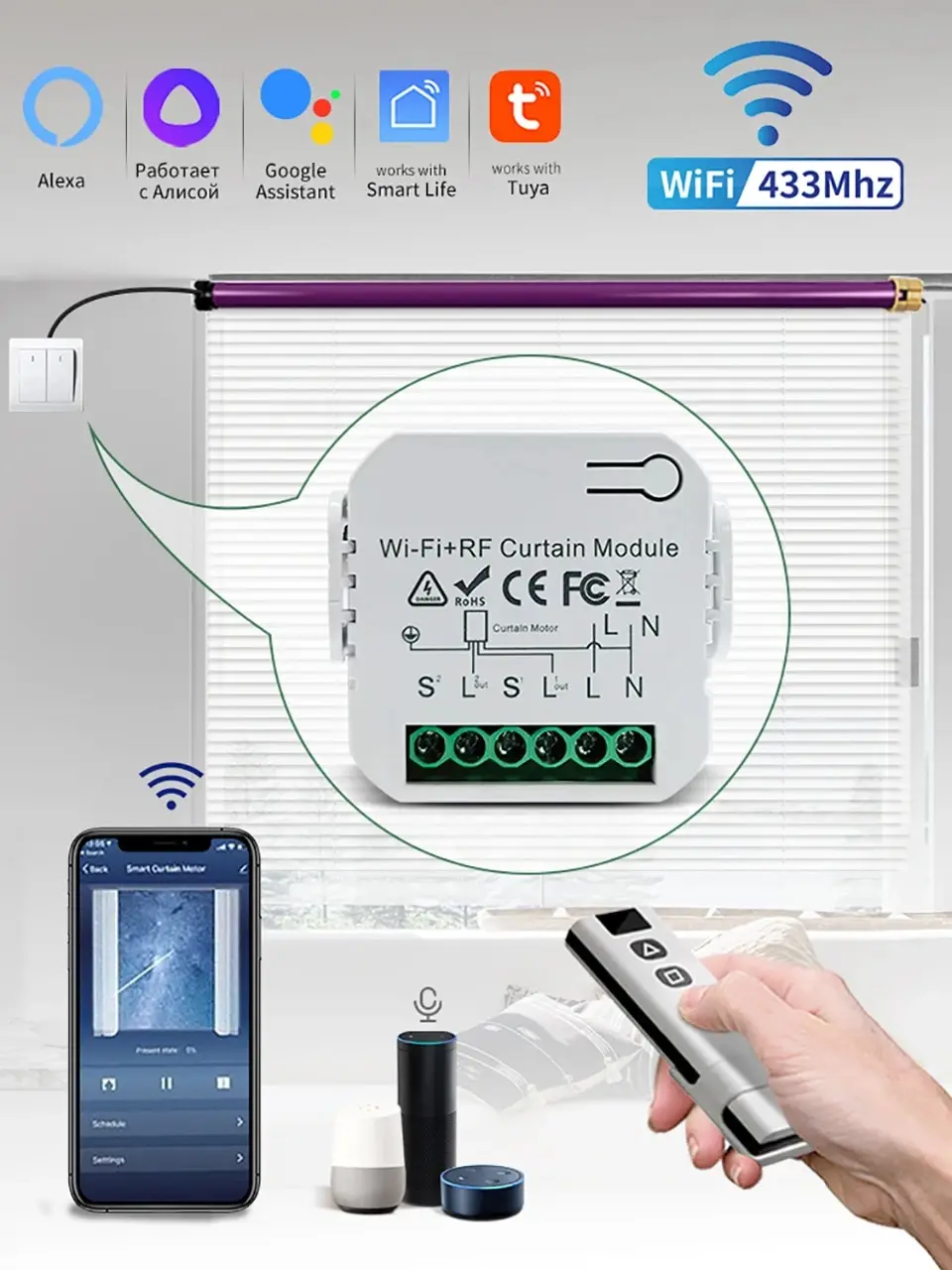

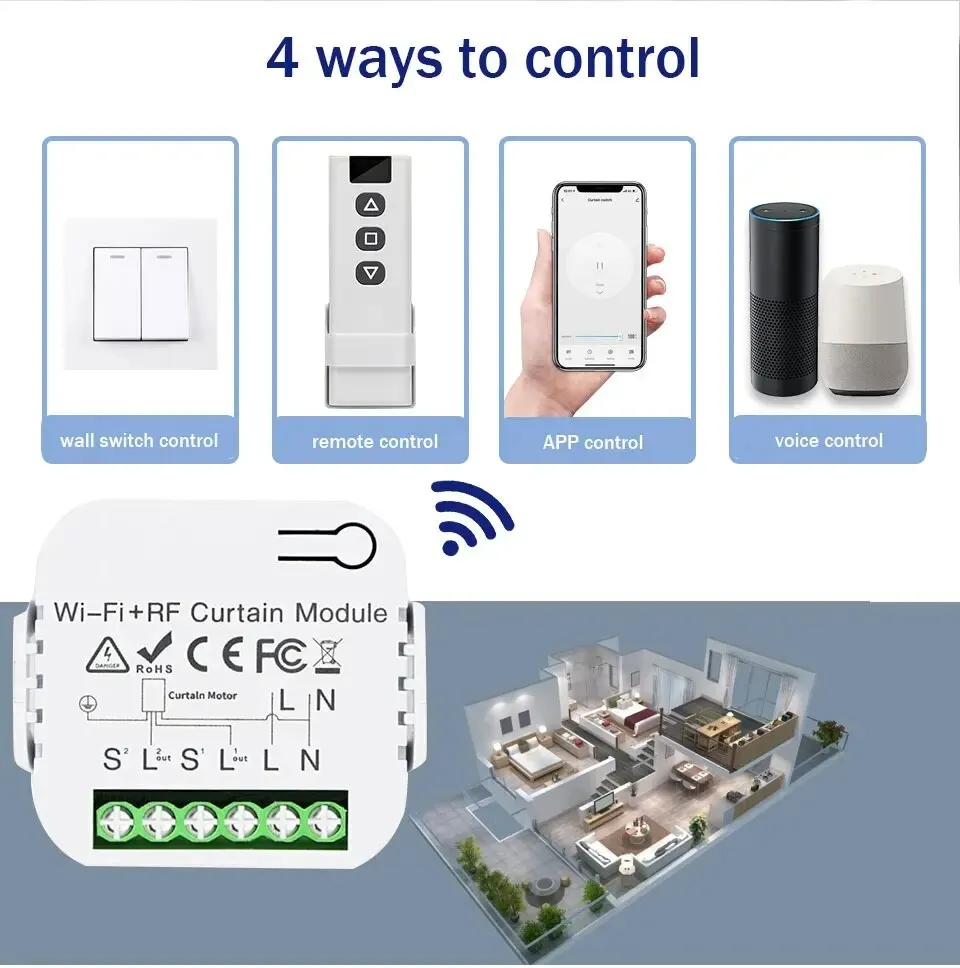

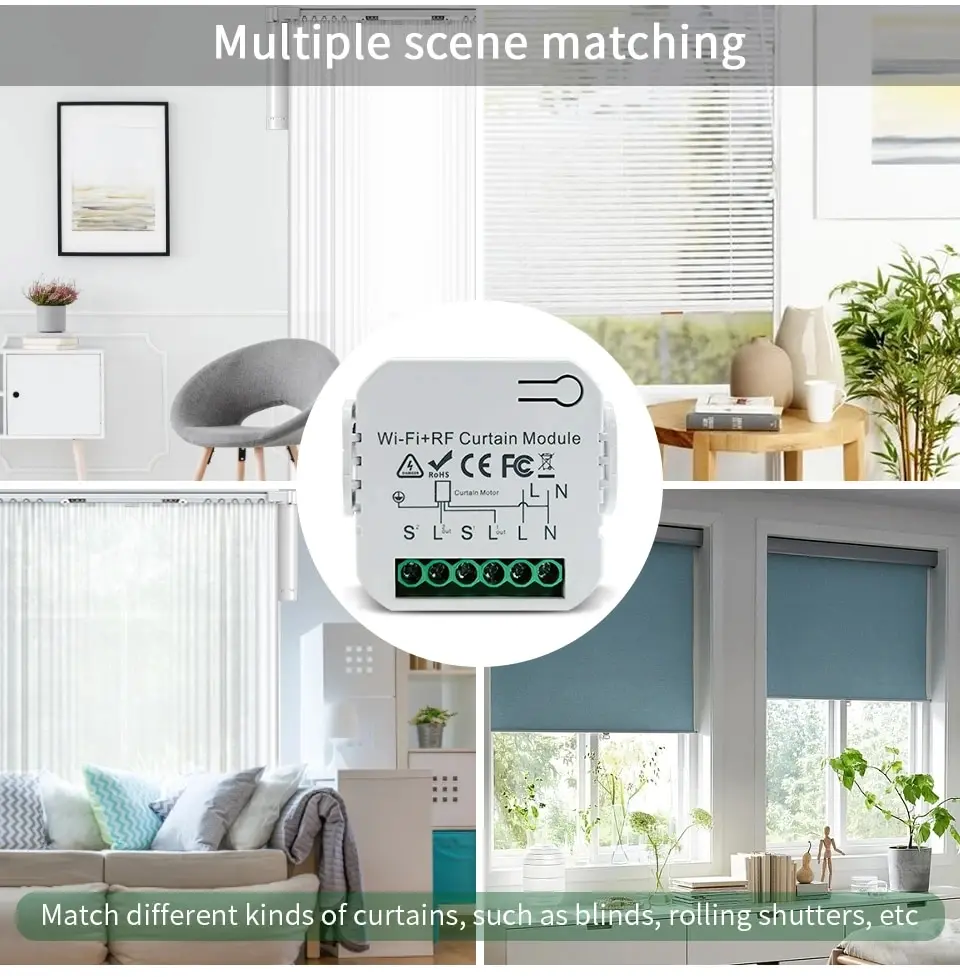

[Use with Much More Convenience with stop function on traditional switch] A really good substitution for a more new smart roller blind switch to work with your traditional curtain switch to realize intelligence. Press your traditional curtain switch once after switch to up/down (On the same button) to manually stop your curtains easily. Also, it can be connected with your roller blinds shutter motor to cleverly control your curtains.

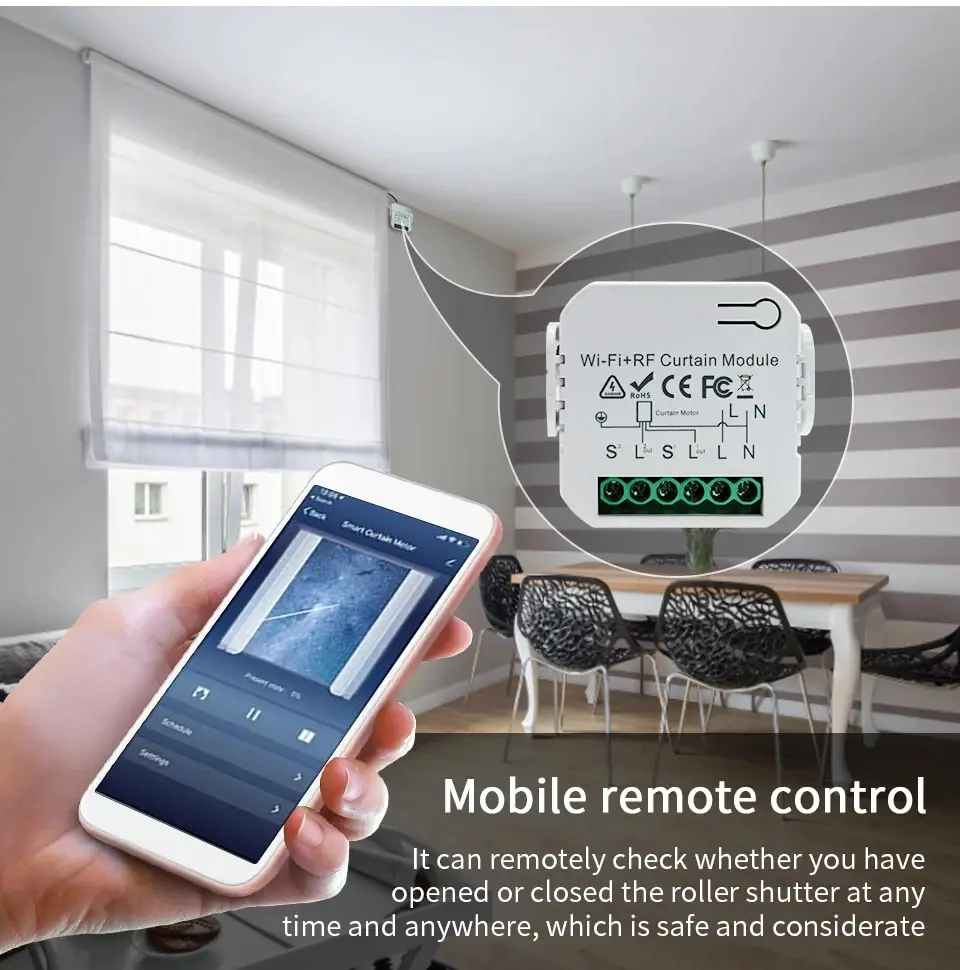

[RF and Wireless Remote Control with a much easier pairing mode] For adding the device with WiFi and Bluetooth connected: Able to remotely control your connected devices on your smartphone wherever you are. (Compatible with Android & iOS for Smart Life and Tuya App.) More importantly, this curtain switch module built-in RF433 frequency, so it Can be controlled with remote switch.

[Hands-free Voice Control] Compatible with Amazon Alexa and Google Home for easy voice control, providing your smart life for controlling blinds with much more convenience.

[Voice control] Once you have this switch, you can control it with Amazon Alexa(Amazon echo/dot/tap) or Google Assistant for voice control.

[Timer Setting and Family Sharing] Take full control of your blinds intelligently with the timer function on your App, which allows to open/close them at a specific time automatically. Even share device to your family members to connect the devices together, support one mobile control more and multiple phones one.

Specifications:

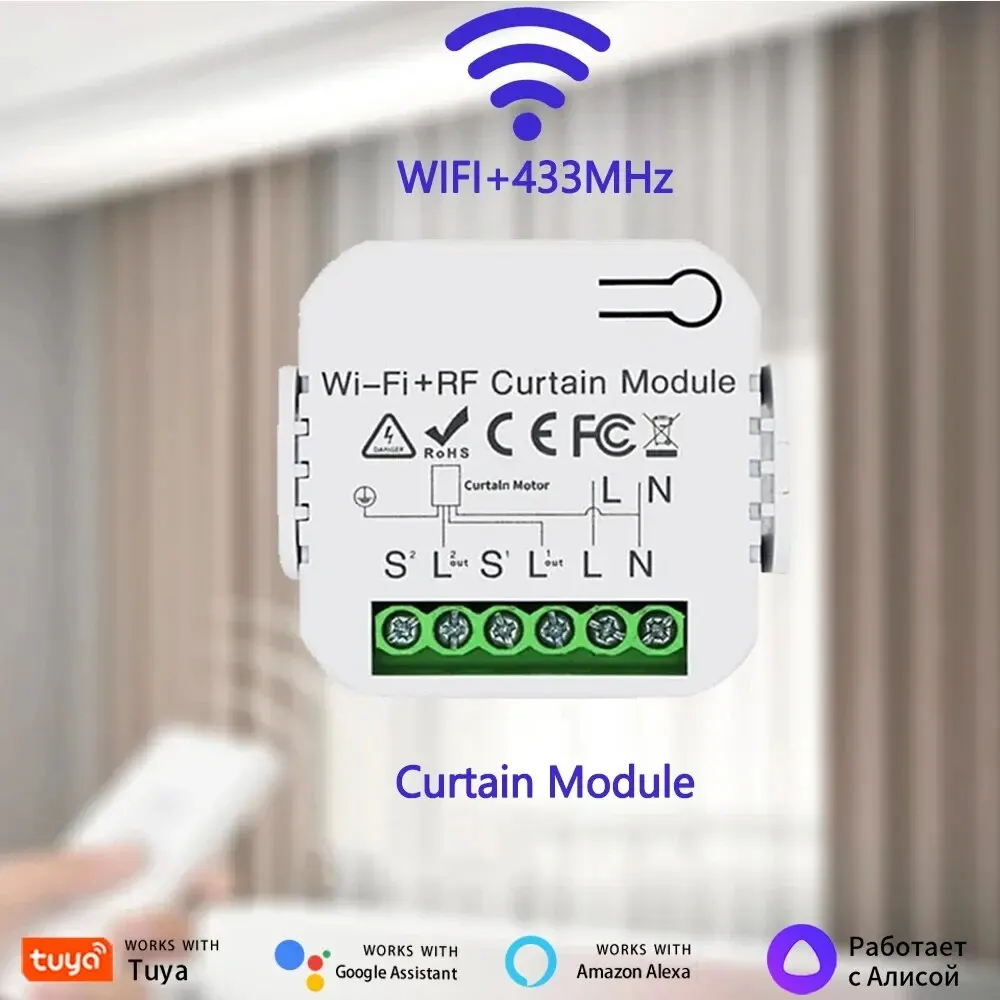

Curtain Module parameter

Input Voltage: AC 100V~240V

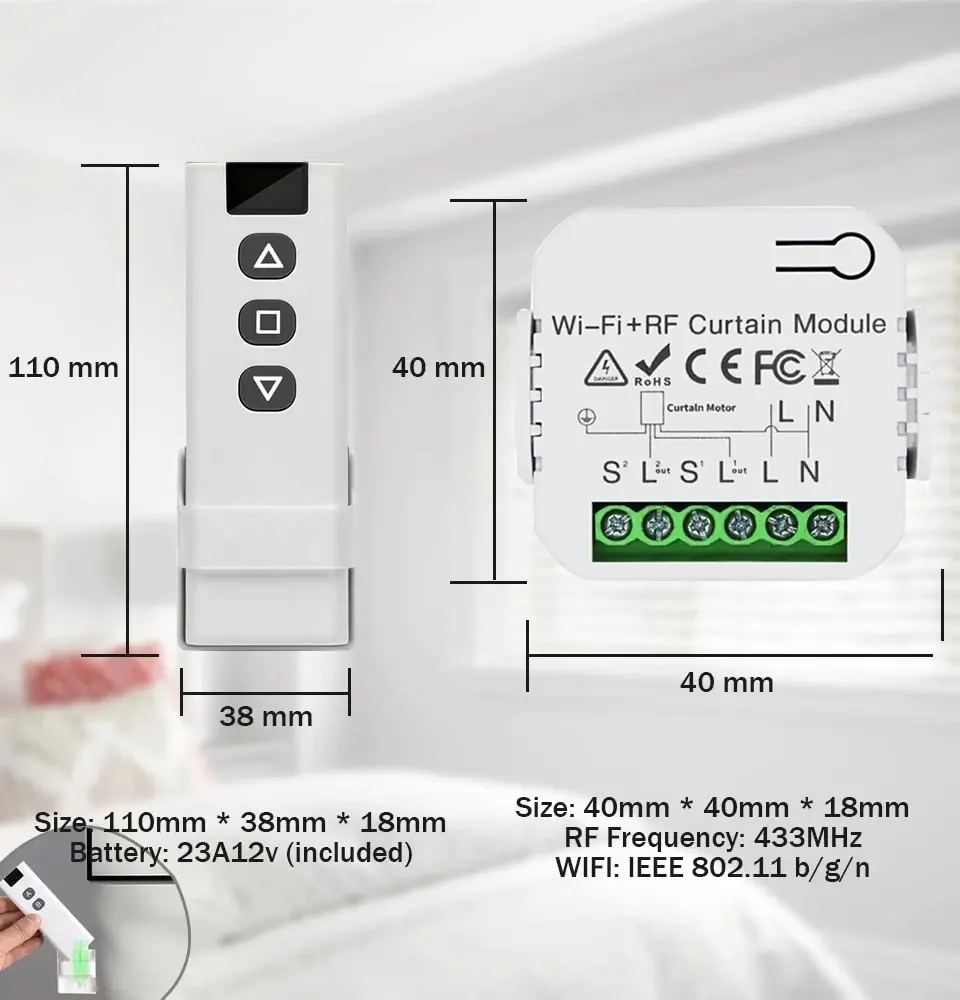

Size:40*40*18mm

RF Frequency: 433MHz

WIFI: IEEE 802.11 b/g/n

Max current: 16Amp

Receiving Sensitivity: >97dbm

Color: White (Outside Shell)

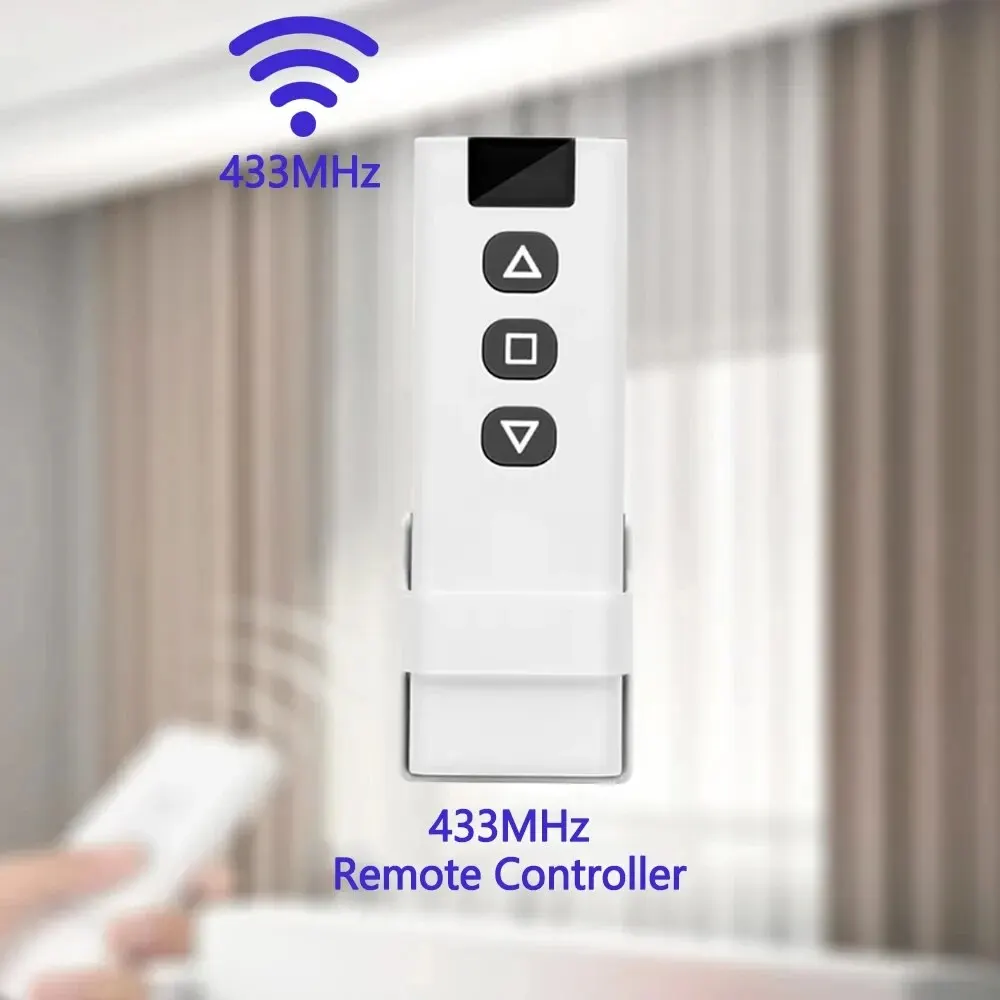

RF Remote parameter

RF frequency : 433MHz

Size:110*38*18mm

Support encoding : 1527 Leaning code

Remote distance : up to 70 meters (theoretical distance)

Battery : 23A 12V( Battery include )

Screw: Include

Base: Include

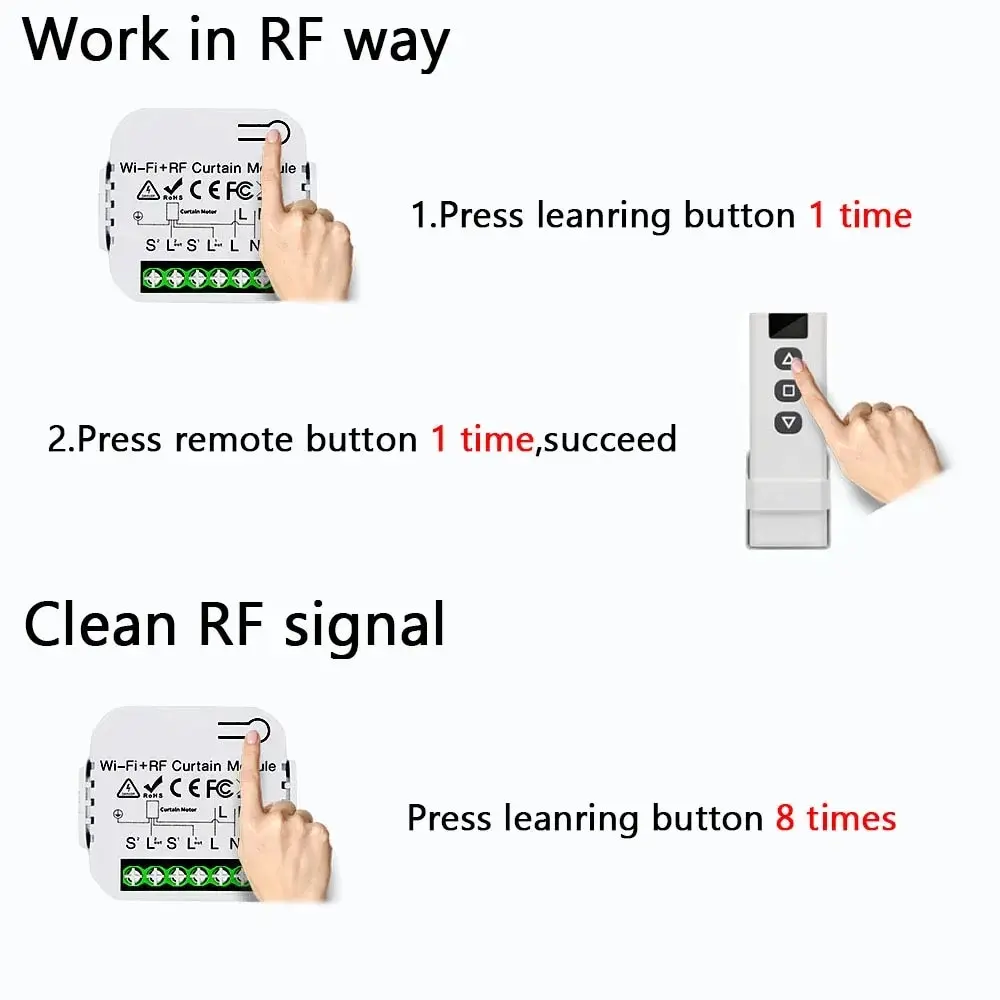

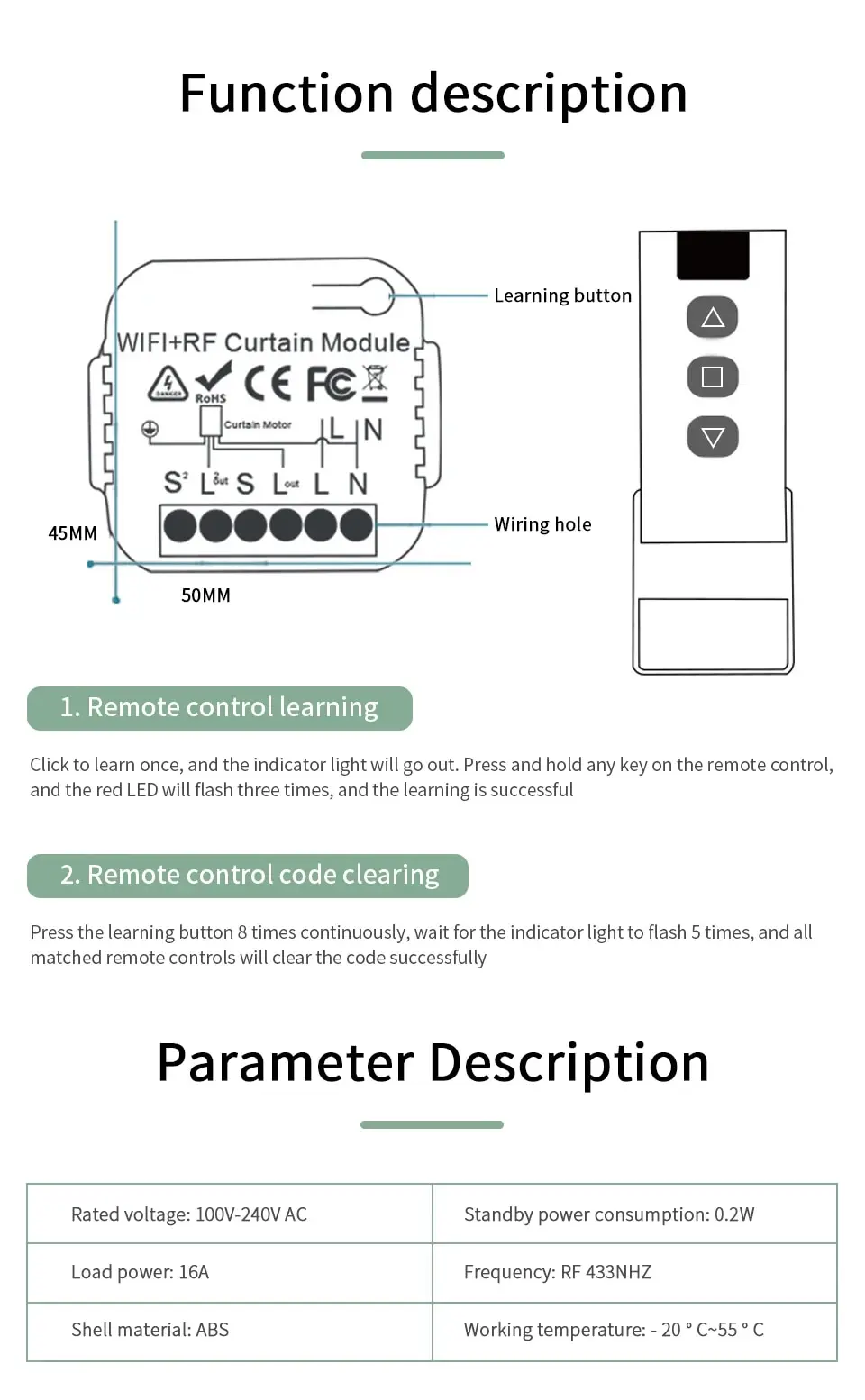

How to get the signal？

Step 1: Press the learning button(on the Receiver) 1 times . Wait for 3 seconds;

Step 2: Press the button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal？

Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

NOTES:

1.On your first using, please control your curtain up and down completely(100%) to let switch and APP remember your curtain longness. If you find up and down are reversed on remote or APP, please check your connection .Maybe you are reversed the line

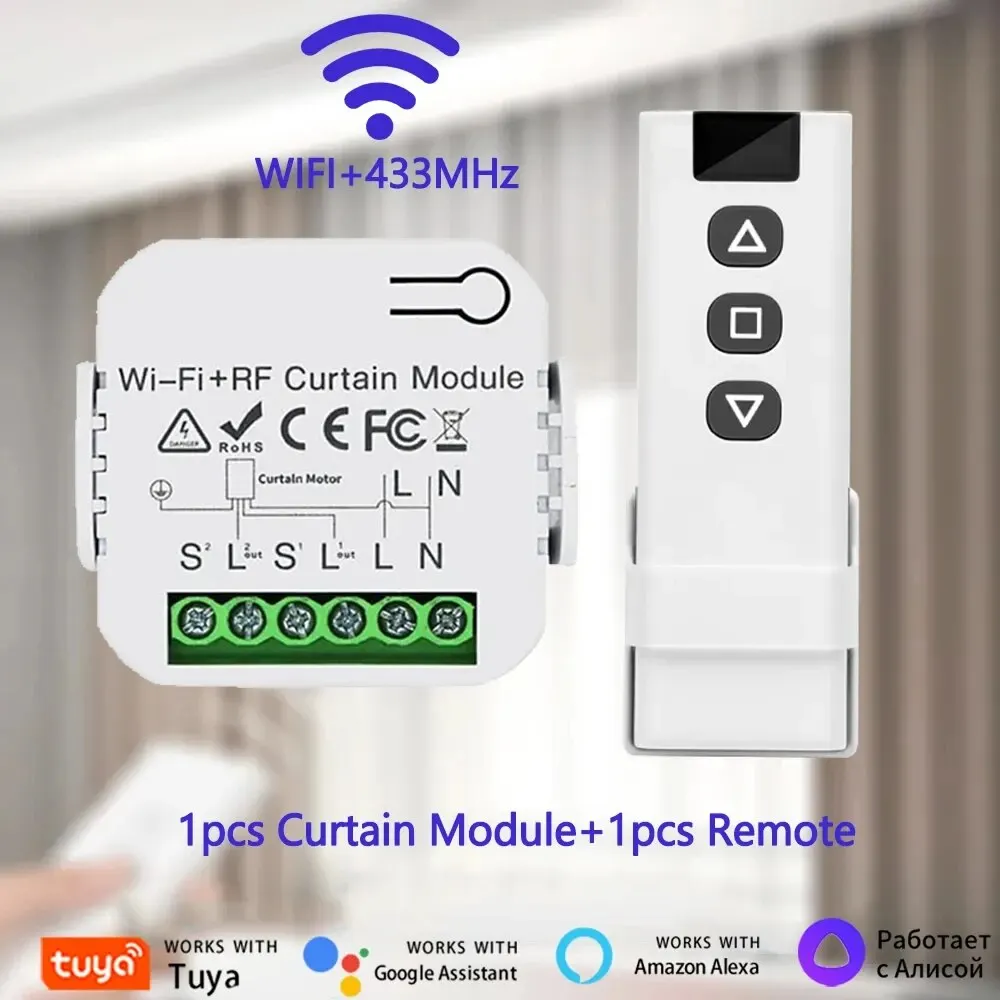

2.This module is wifi+rf , remote is rf only

3.The module and remote are a set product. They cannot use indivually.They cannot work with other products in our store or other brand

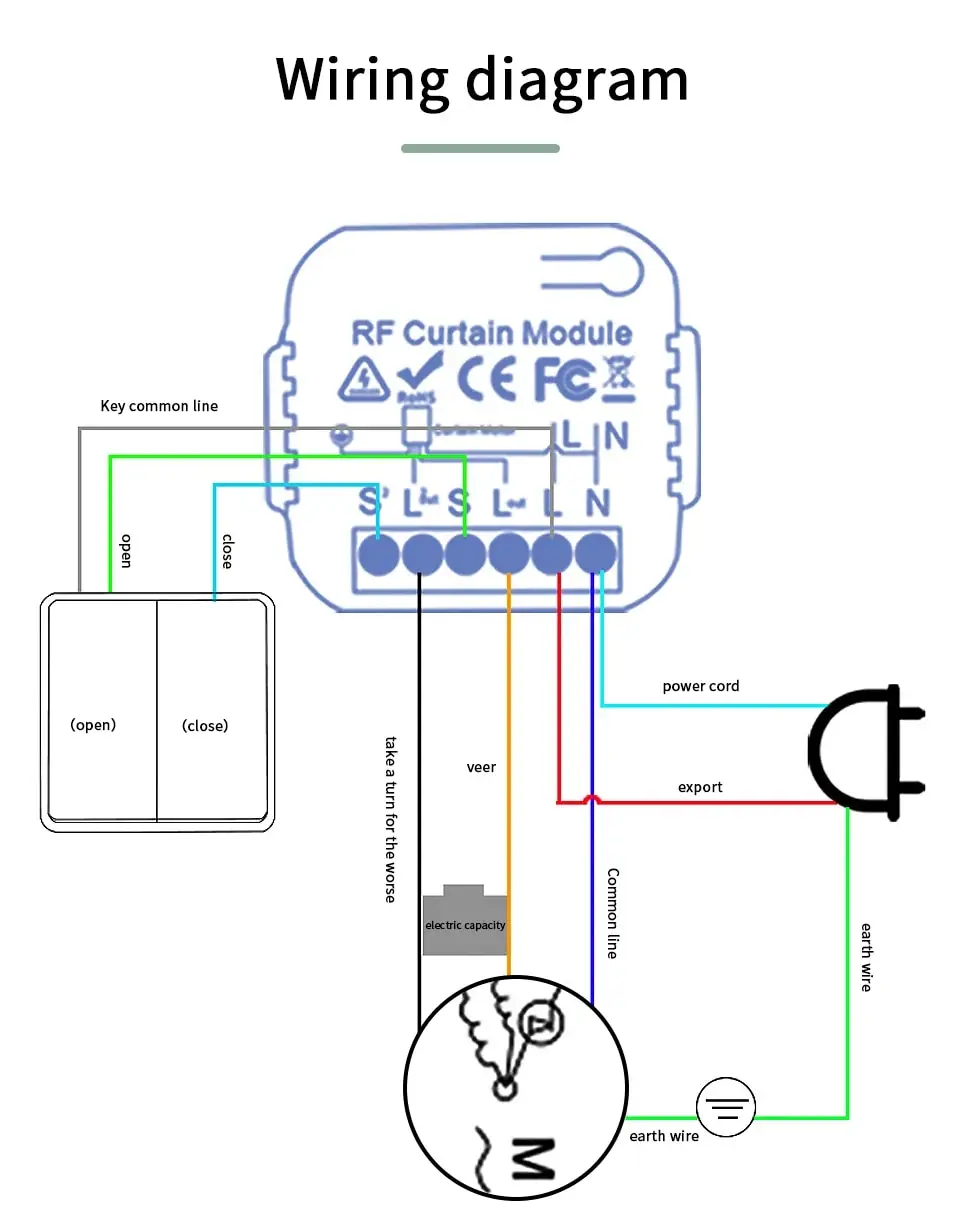

4.Working voltage is AC 100-240V,needs L and N line
