원격 제어 RF433Mhz 무선 조명 스위치 DC 12V 1CH 10A 릴레이 수신기 송신기 도어 전자기 잠금 DIY 모듈

Please Note:

The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .

Specifications:

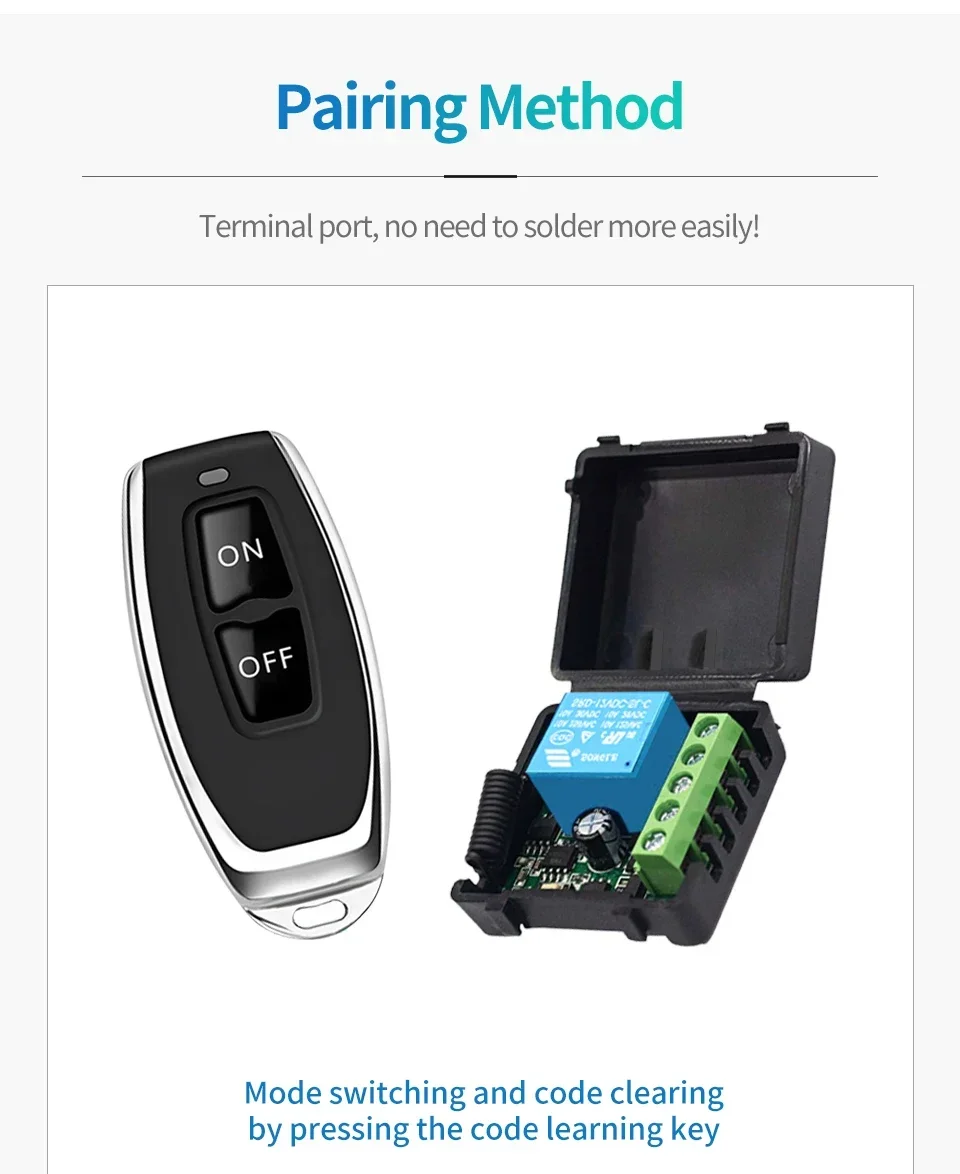

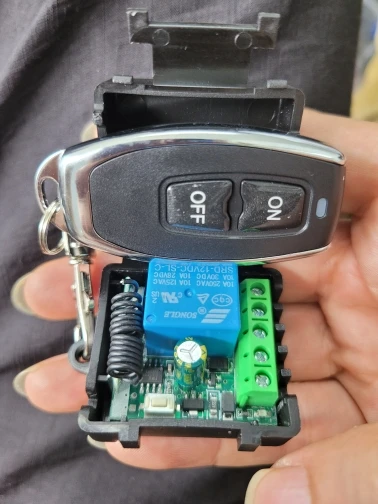

Receiver(switch)
Input voltage: DC 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527

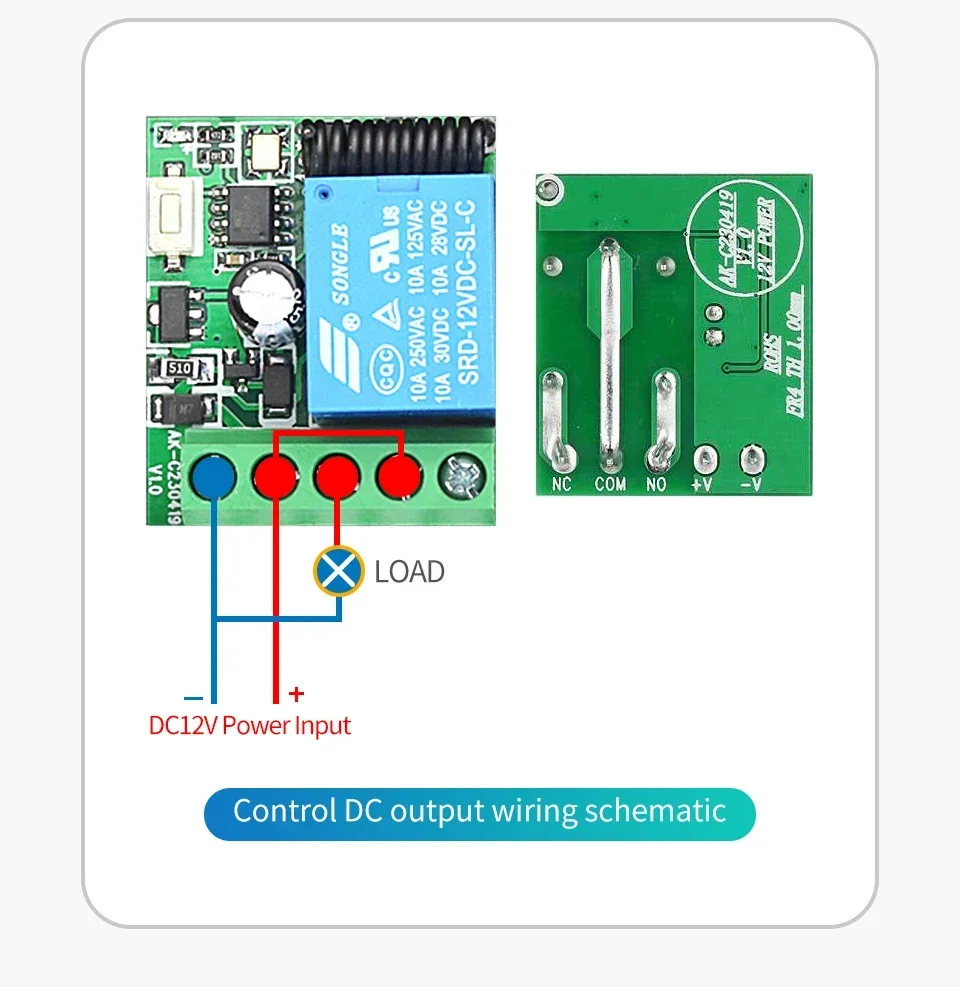

Wiring method: NC COM NO
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

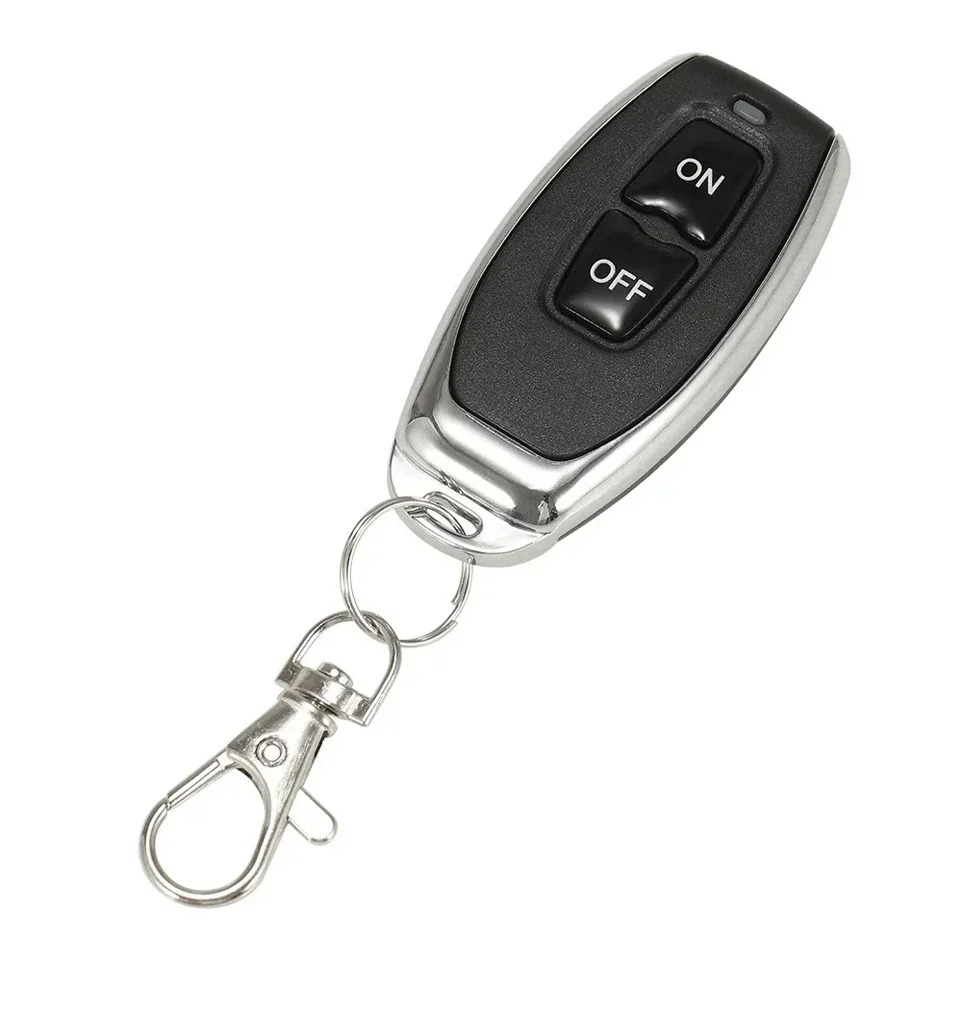

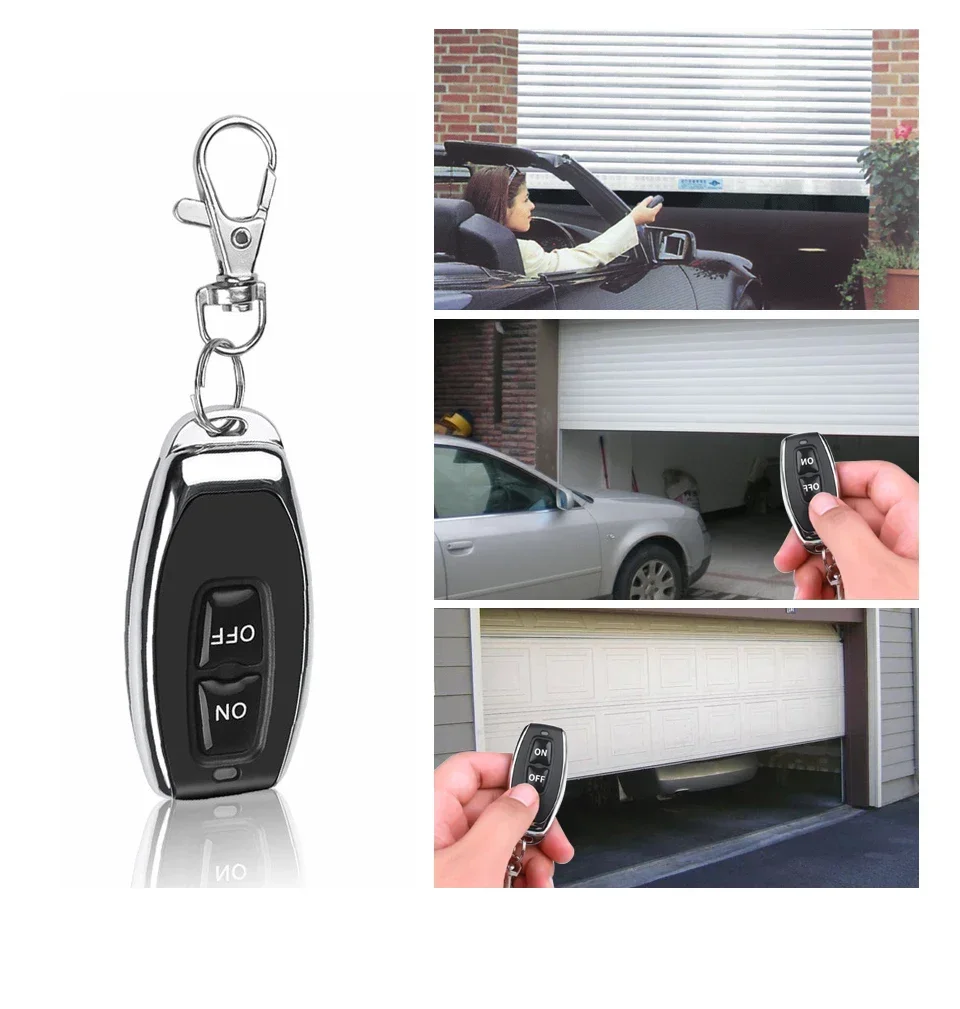

Remote Controller:
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.

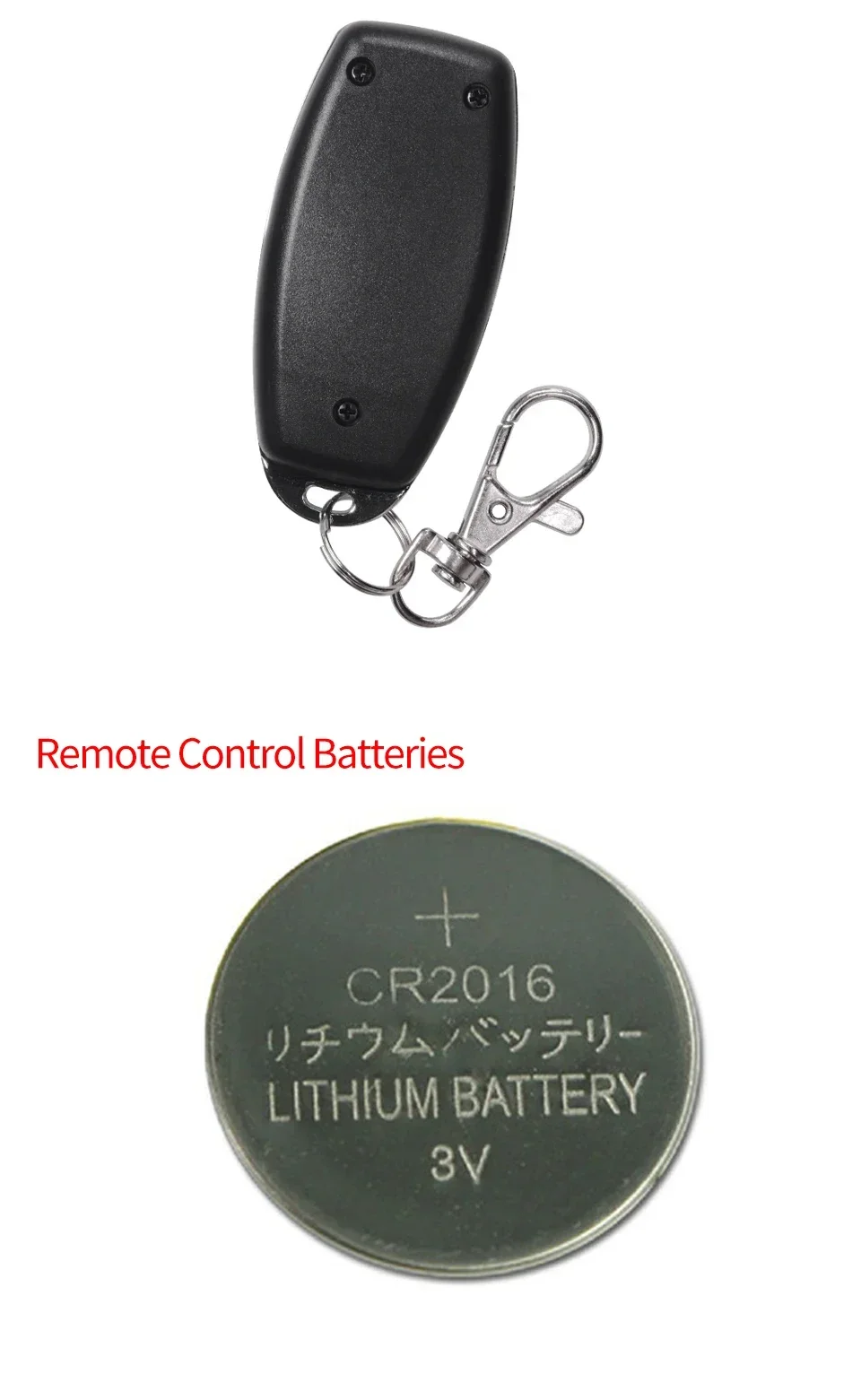

Working Voltage: DC 3V.
Working Current: <25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Color: Black.

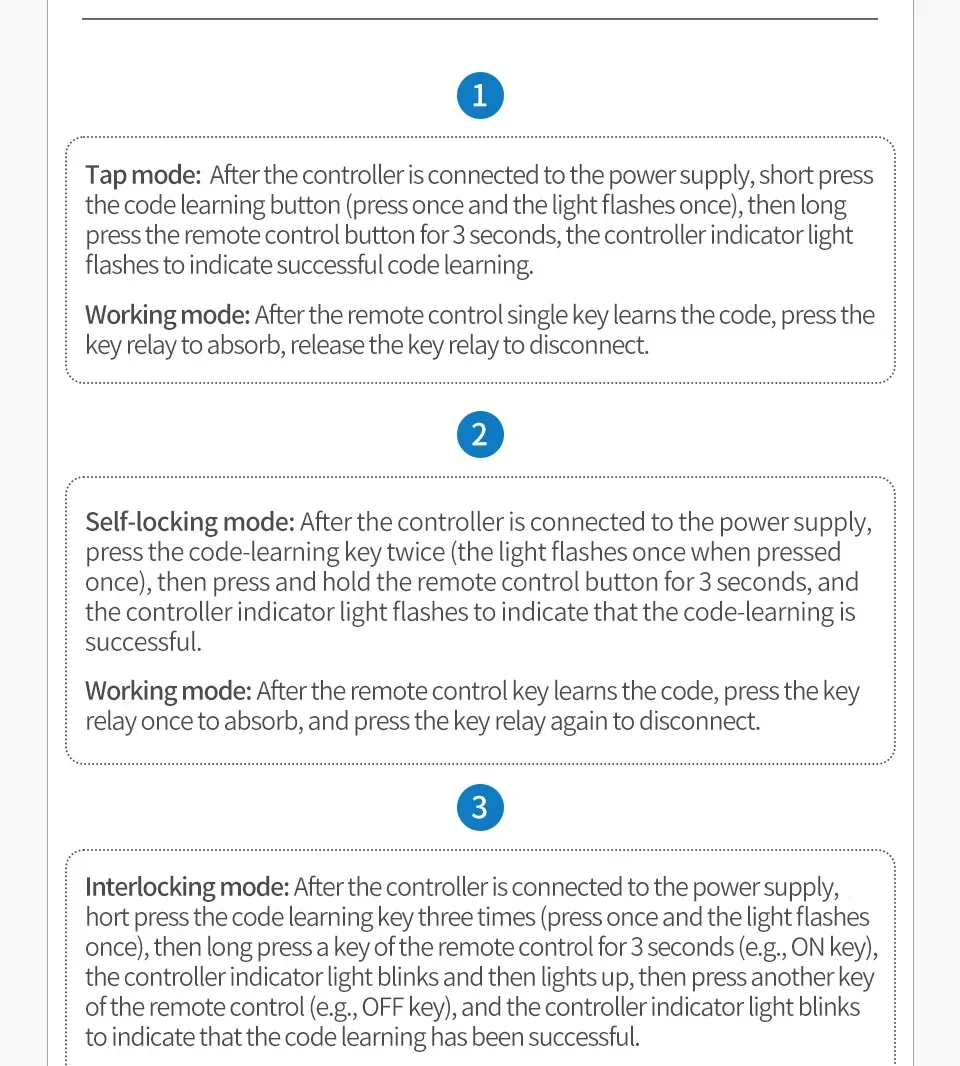

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

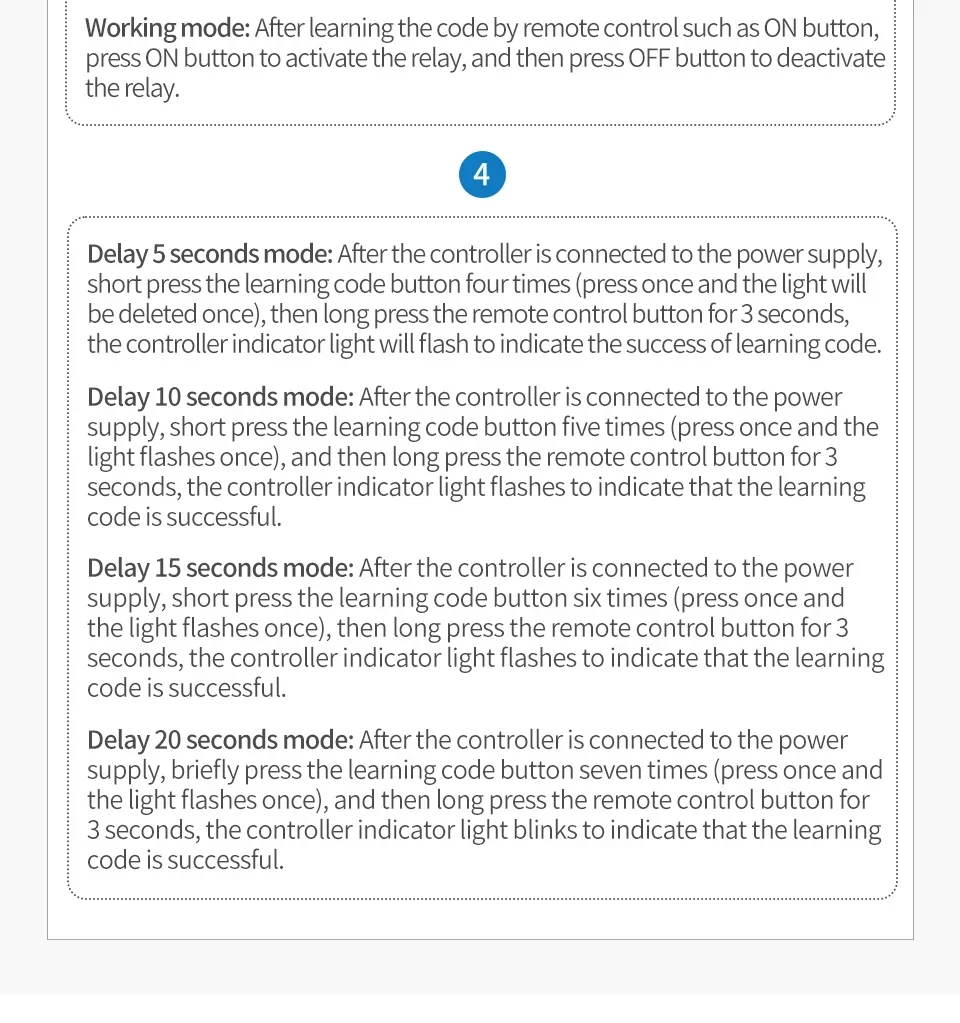

Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s
