Friendly reminder!

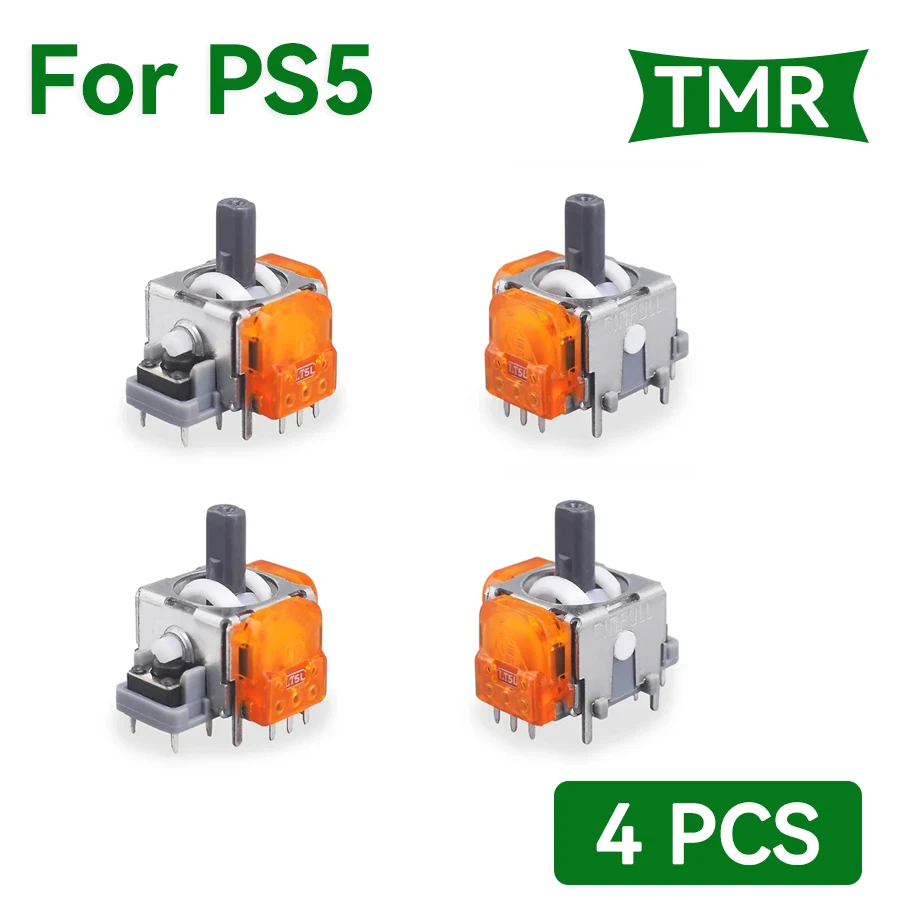

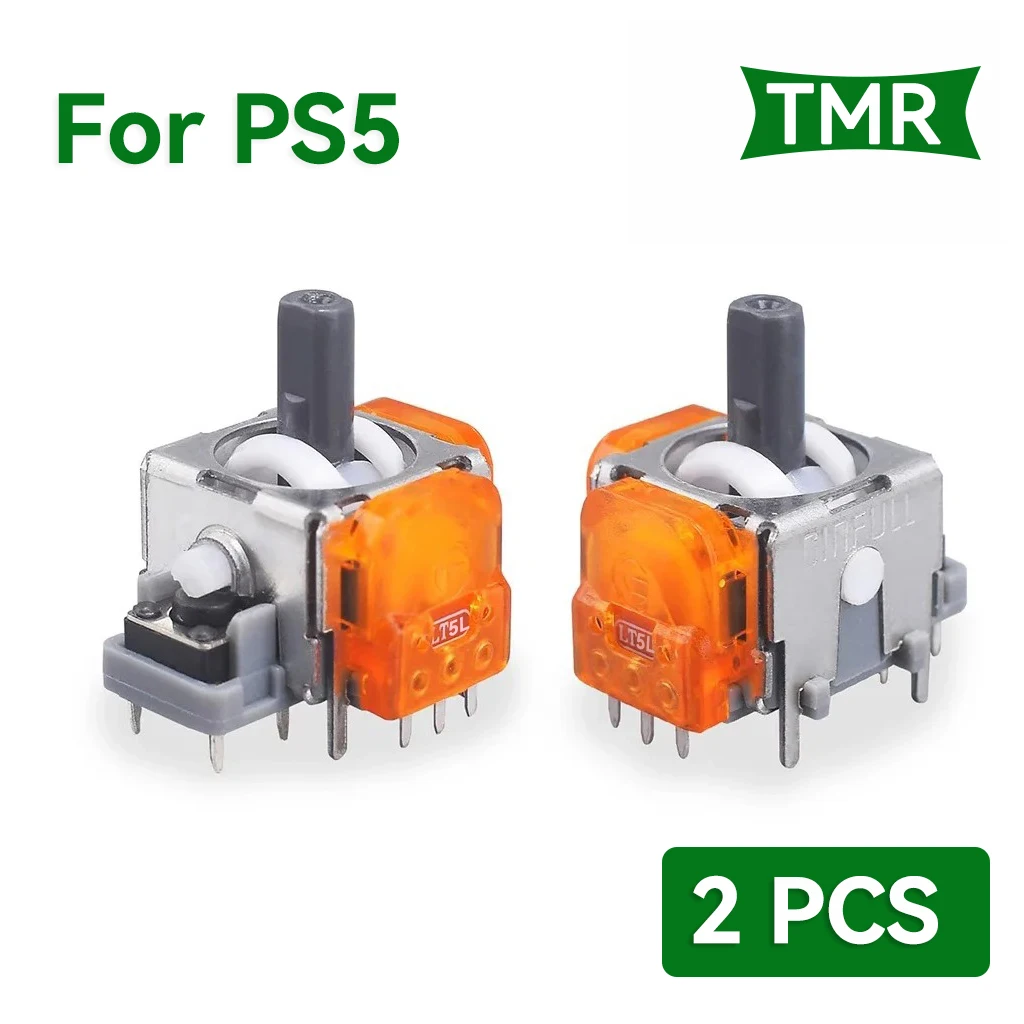

This product is available in several quantity options: 2-pack, 4-pack, and 10-pack.
Please select the quantity you require. We will send you images of the options you choose. Thank you!
Purchasing Instructions:

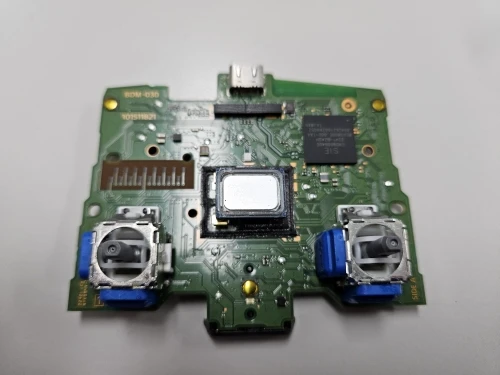

1. The left and right joysticks are interchangeable. Soldering skills are required to replace the joysticks. Hands-on users can purchase directly. This shop only sells accessories and does not provide technical guidance. Modifications and repairs are personal and we are not responsible for the consequences of such modifications or repairs.
2. PS5 Elite controllers are not software-calibrated and may have significant errors. We do not recommend their use.

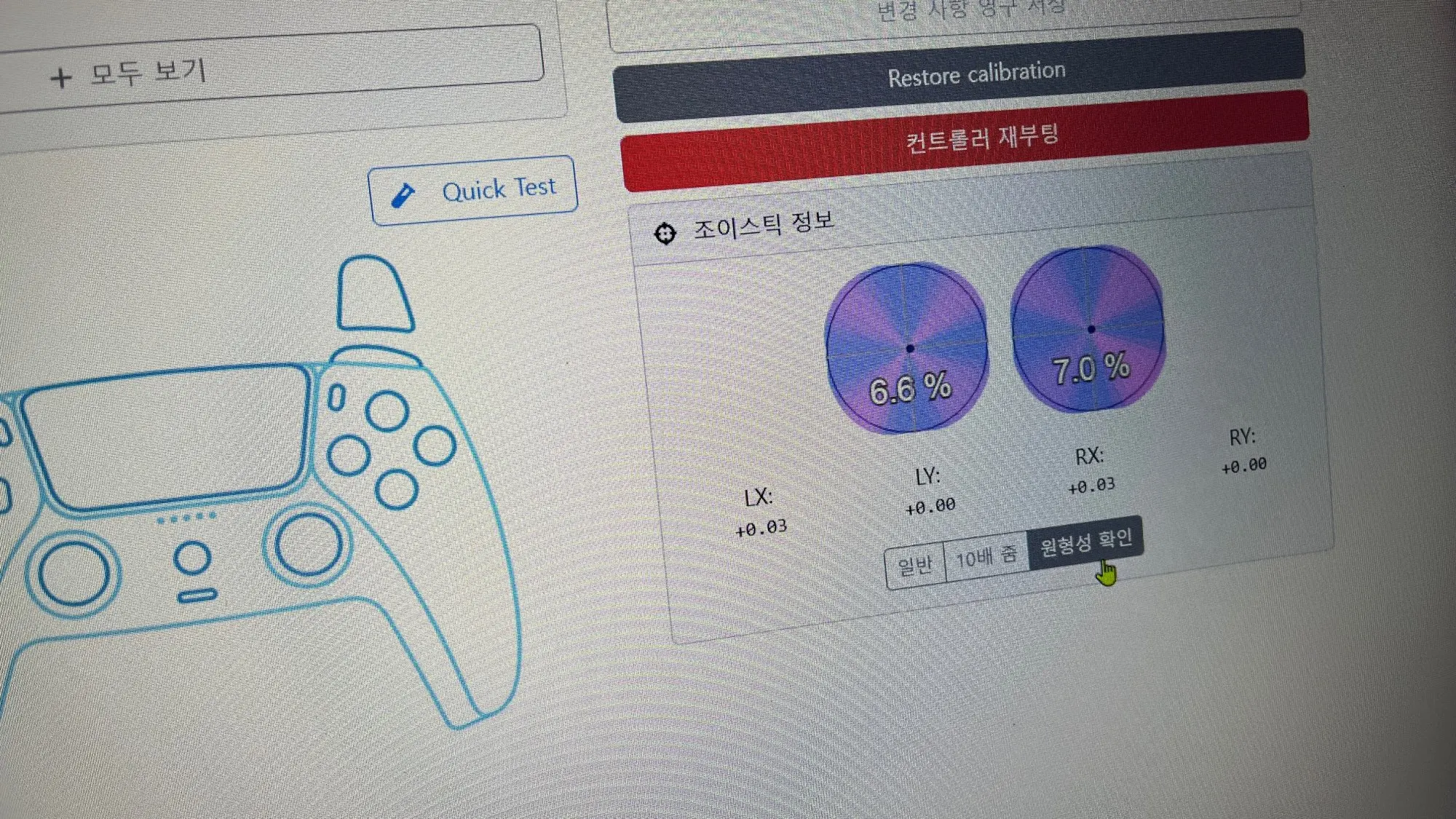

3. PS5 controller joystick calibration: Use the third-party open-source calibration tool (dualshock-tools.github.io) to calibrate the joysticks.
4. For disassembly instructions, visit iFixIt.

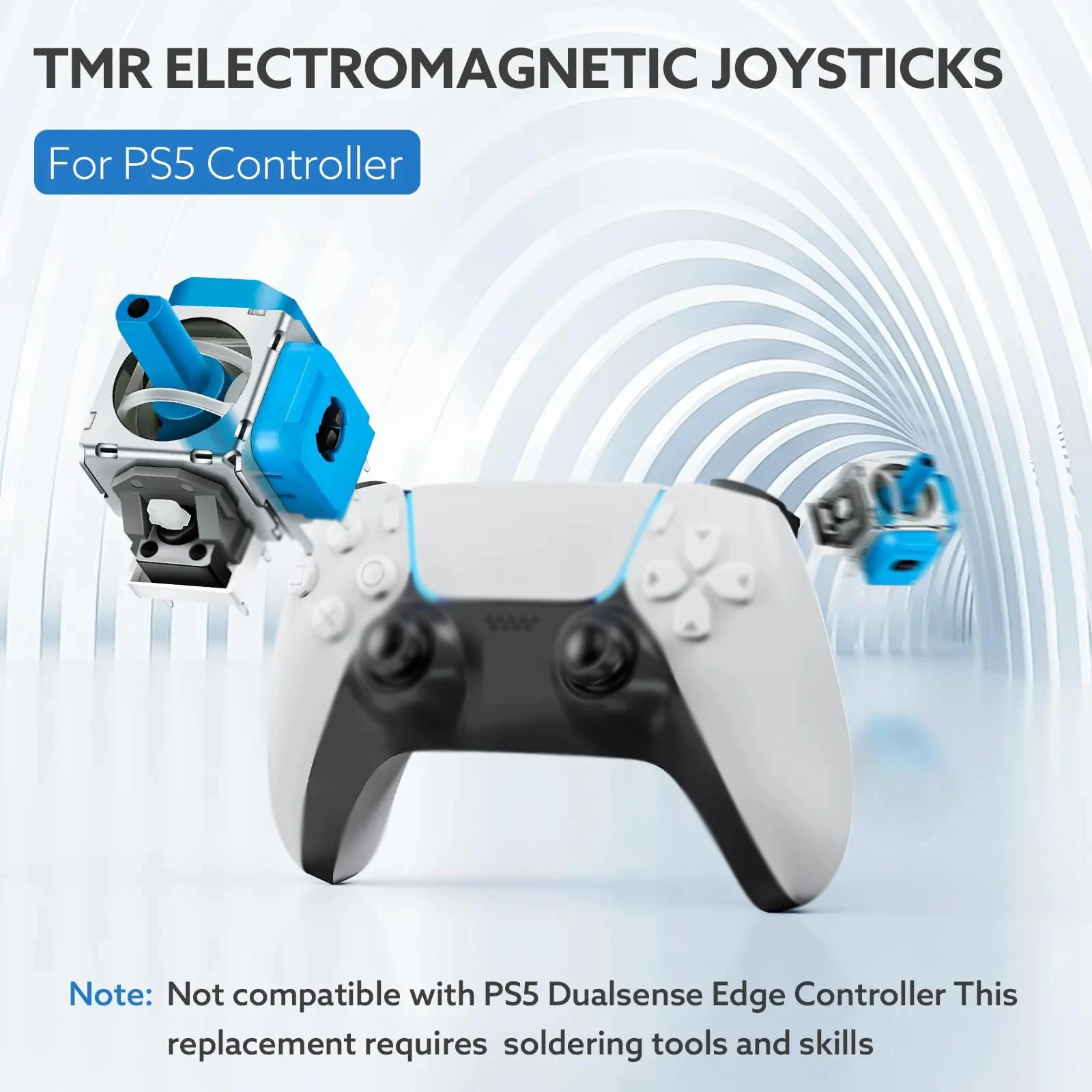

【About TMR Electromagnetic Joystick】- TMR joystick uses advanced tunnel magnetoresistance effect technology. Its working principle is based on the tunnel magnetoresistance effect of magnetic multilayer film materials. It uses TMR sensors. When the joystick is turned, the size and direction of the magnetic field will change. When acting on the TMR sensor, the magnetic moment of the ferromagnetic layer will change, thereby changing the spin polarization degree in the tunnel structure, and then affecting the tunnel resistance value to achieve an effect similar to the change in the resistance value of the carbon film structure. The joystick value can be output by measuring the tunnel resistance.
【Advantages of TMR Electromagnetic Joystick】- Compared with traditional carbon film joysticks, TMR joysticks have the high life and non-drift characteristics of Hall joysticks, and at the same time have the high accuracy and low power consumption of carbon film joysticks. It has higher sensitivity and resolution, and the feedback accuracy can reach millimeter level, which fundamentally solves the joystick drift problem.
【High Sampling Accuracy】- Adding a 12-bit sampling chip, there are 4096 levels of joystick sampling and grading, which can accurately convey subtle operations.
【Low Power Consumption】- Using a customized low-power TMR chip, the power consumption of a single chip is as low as 200μA, which is conducive to extending the battery life of the gamepad controller.
【Good Linear Response】- The output voltage is linear within the specified range, the operation feedback is accurate, and the player can accurately grasp the status of the game character.
【Strong Anti-interference】- The influence of electromagnetic interference (EMI) and radio frequency interference (RFI) is almost zero, and it is generally not affected by high-frequency vibration or movement.
【Long Life】- The structural design without physical contact reduces wear and tear, avoids drift, and has a long service life.
【Comfortable Feel】- Some of them support stepless damping adjustment, and the damping strength can be adjusted through the handle knob to adapt to different games.
Parameters
Recommended Age: 18+
Place of Origin: Mainland China

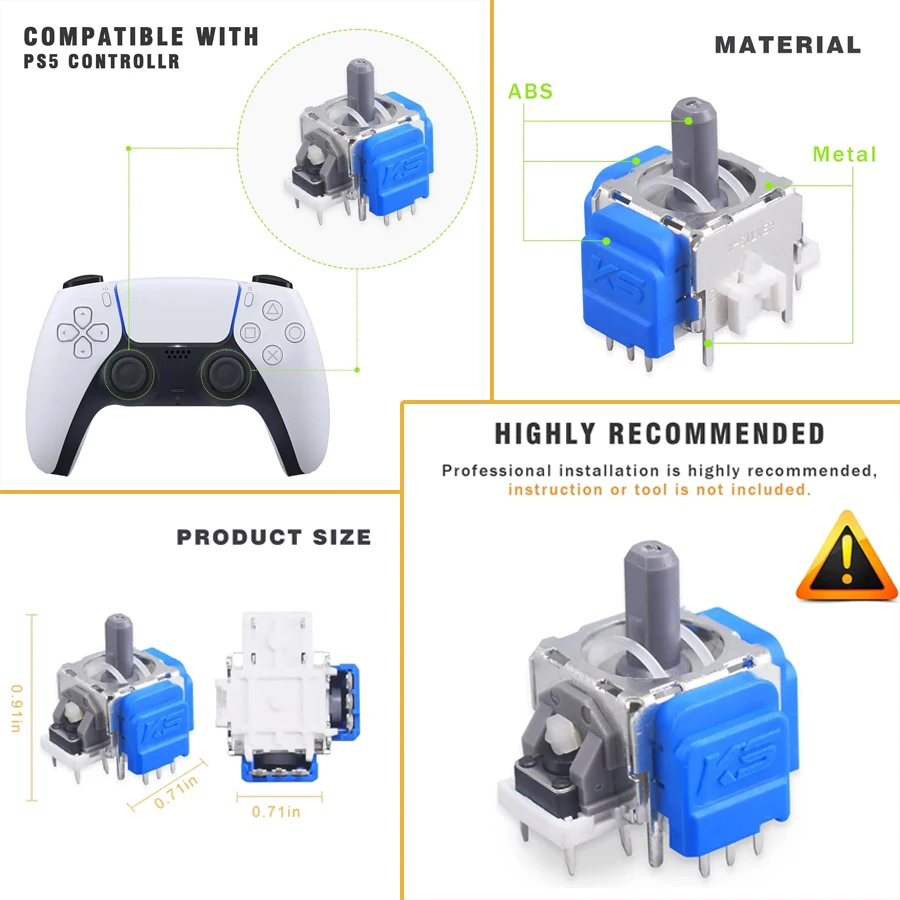

Material: Plastic
Dimensions: 20*15*15mm
Battery: No batteries
Quantity: 2/4/10 PCS
Compatible Models: PS5

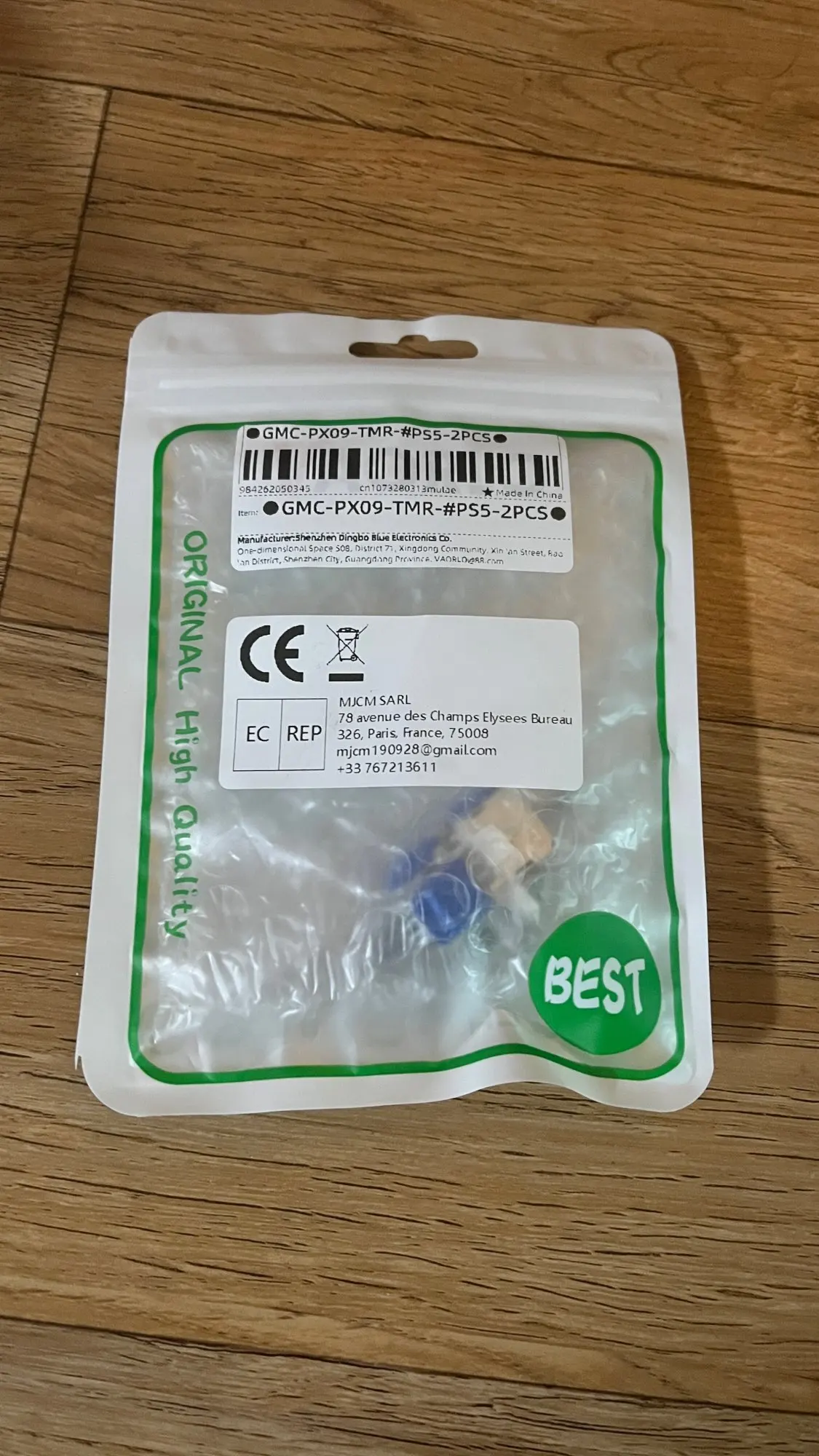

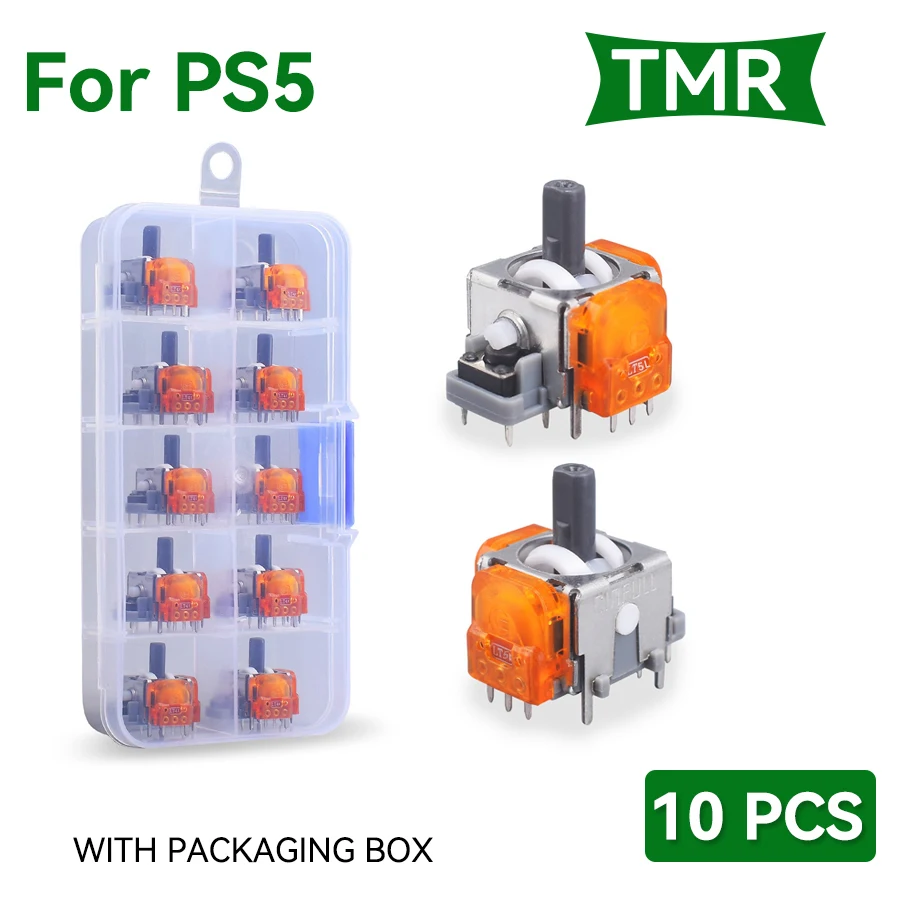

Package Includes:
2/4/10* TMR-3D Analog Joysticks
