100% Original Vgate vLinker FD+ V2.3 BT4.0 for Ios Android/ BT3.0 for Android Car OBD2 Scanner Car Diagnostic Tools J2534 Auto Tool, support for Forscan, for Bimmercode, For Ford PK ELM327

* Vgate Vlinker FD+ Bluetooth 4.0 version, for iphone/ Android

* Vgate Vlinker FD V3.0 Bluetooth 3.0 version, for Android only

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With FORscan For Ford 13+ Detection Function:

1. Automatically lock
2. Speeding reminder
3. Emergency brake flashing lights
4. Lock the car and whistle
5. Xenon lamp mode
6. One-click skylight
7. Tire pressure monitoring
8. Snowflake logo
9. Cruise function
10. Compass
11. Average (instantaneous) fuel consumption
12. ECO energy saving mode
13. Steering power adjustment

Vgate vlinker FD+ Professionally Suitable for Forscan

Support Programming And Diagnostic For Ford, For Mazda, For Mercury, For Lincoln

Read / Clear

EngineDTC

Adiust Parameters

Refresh Parameters

Hidden Function Activated

Read Data Stream

Vgate Vlinker FD supports App

Support App: 6 kinds of APP software options:

1. Torque Lite

2. OBD2 Fusion

3. BimmerCode

4. JScan

5. FORScan Lite

6. OBD Auto Doctor

How to Connect Vlinker FD well with ForScan software ?

Android System :

Step 1: Insert the adapter into the OBD interface of the car. Turn ignition to key On Engine Off Position. Open the "Bluetooth“ Settings and wait to search for available devices.

Tap “ VLinker FD"
Tap: "Scan" if vlinker FD-Android does not show under " Available Devices"

Step 2: Enter the pairing code: 1234

Step 3 : Succcessfully paired "VLinker FD"

Step 4 : Open the setting of FORScan

Step 5: Select Connection Type " Bluetooth 0 or Bluetooth 1 or Bluetooth 2"

Step 6: Select Bluetooth adapter " VLinker FD"

Step 7: Go back and Click the adapter, then adapter's " BT" LED Blinking and the "OBD" red Led Blinking in the middle.

Step 8: Wait for the connection to succeed

IOS System

Step 1: Insert the product into the OBD interface of the car. Turn ignition to key On Engine Off Position. Enable your phone "Bluetooth". (Just enable Bluetooth button on the IOS device and continue to the OBD app setting)

Step 2: Run FORScan Lite

Step 3: Tap CONNECT Button on Statues page

√ Connected. All LED indicators lights on while sync date from Vehicle.

√ Select different function modules on the status page.

Vgate vLinker FD+ Support Protocols

These protocols cover almost 99% of the OBDII Cars on the market.

Rich instruction set, compatible with more APP software：

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

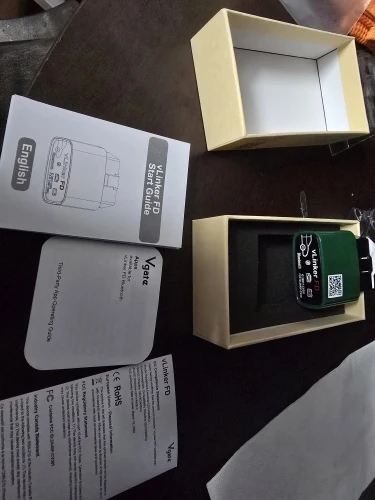

Vgate vLinker FD+ Packing List :

1 x Vgate vLinker FD3.0 or Vgate vLinker FD+ BT4.0

1 x User manual
