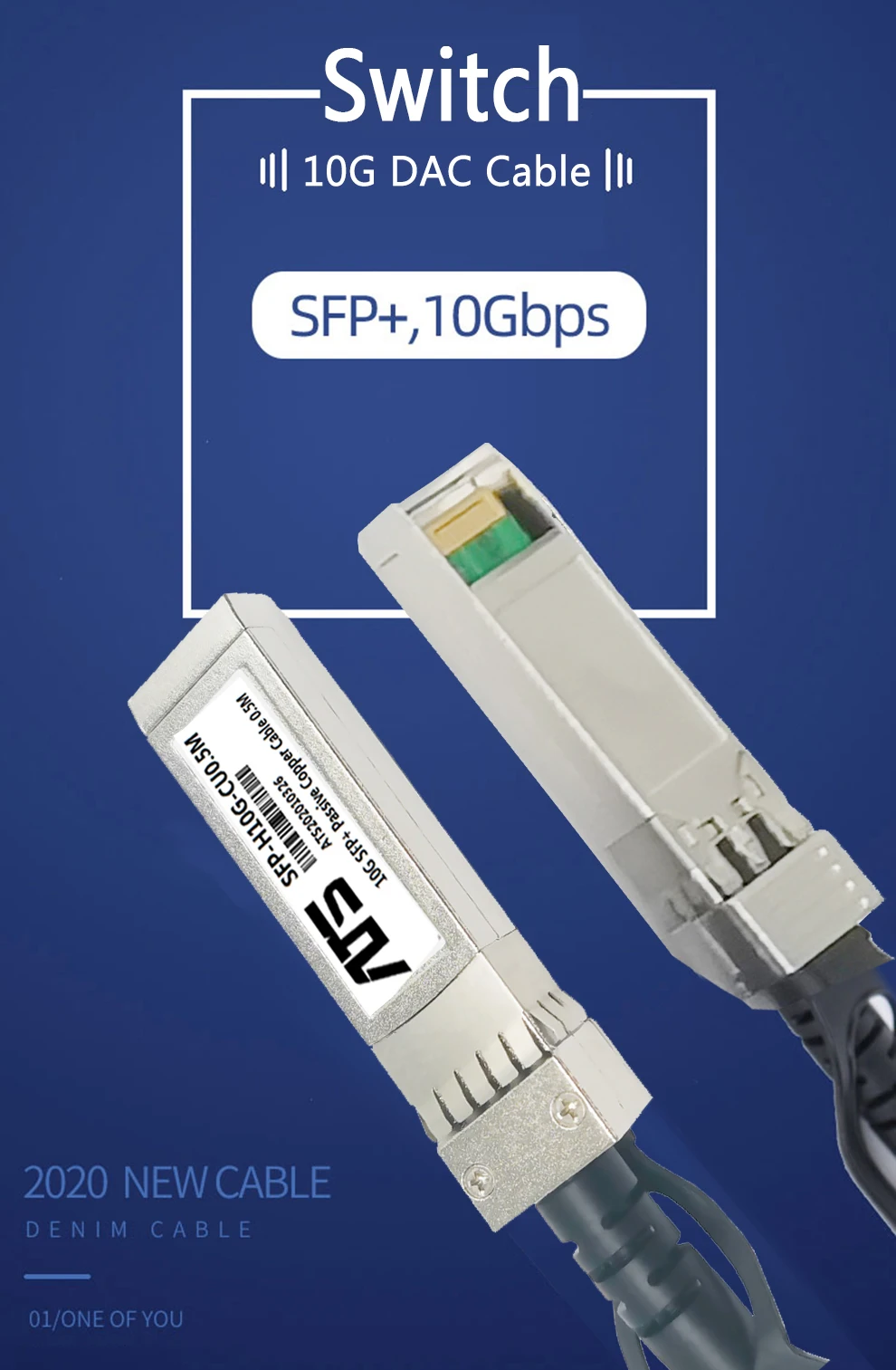

10G SFP+ 직접 연결 패시브 구리 케이블 DAC 케이블 직접 연결 패시브 케이블 0.5-10M Cisco Huawei MikroTik 스위치용

1、Description

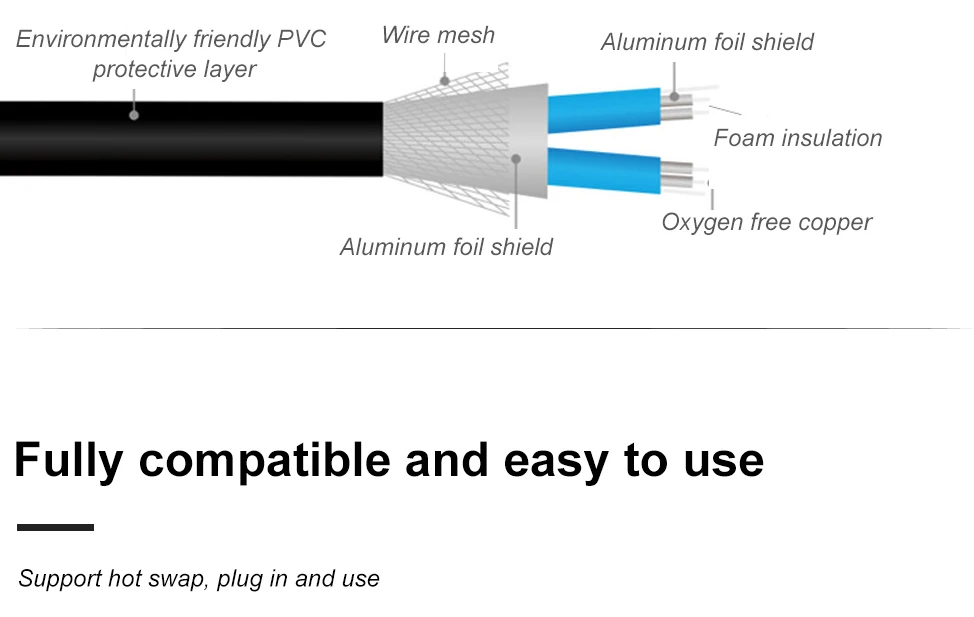

Realsea’s 10g SFP + passive cable uses shielded high-speed differential cable, which conforms to 10 Gigabit Ethernet standard and SFP multi-source protocol (MSA) standard, supports 10g transmission rate, and can also be downward compatible with 1g rate. SFP + passive cable is the preferred solution for short distance application, which is widely used in data transmission between data center and cabinet or between adjacent cabinets. Its biggest characteristics are low cost, ultra-low power consumption (less than 0.1W) and high reliability.

2、Features

Ø Support for multi-gigabit data rates up to 10.5Gbps

Ø Data rates backward compatible to 1Gbps

Ø Hot-pluggable SFP 20PIN footprint

Ø I/O Connector designed for high speed differential signal applications

Ø Improved Pluggable FormFactor(IPF) compliant for

enhanced EMI/EMC performance

Ø Compatible to SFP+ MSA

Ø Compatible to IEEE 802.3baand SFF-8431

Ø Power Supply :+3.3V

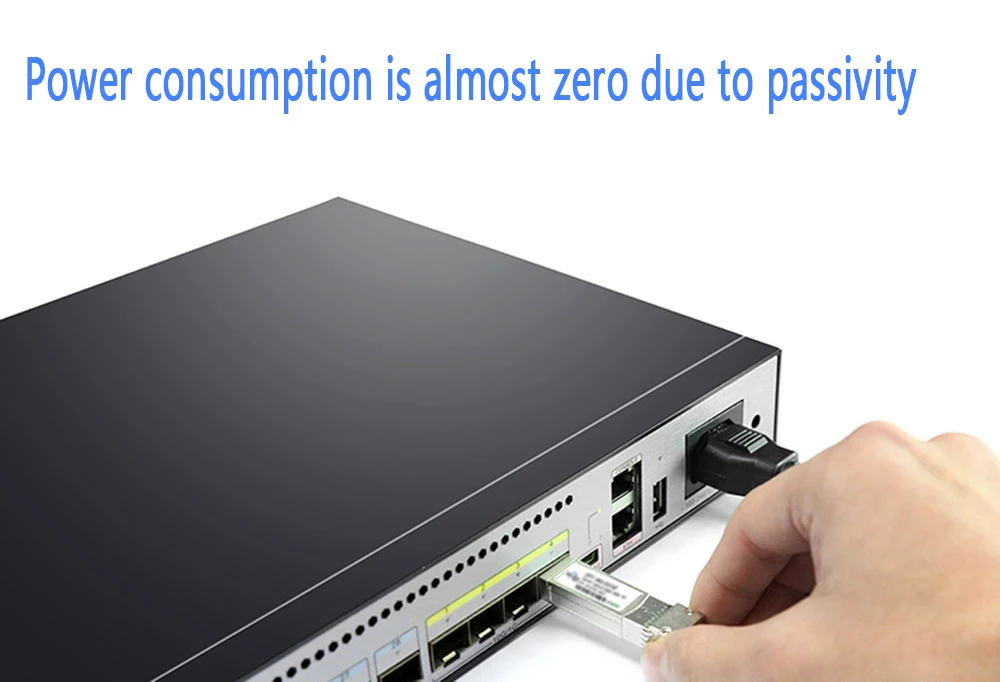

Ø Low power consumption: 0.01 W (typ.)

Ø Temperature Range: 0~ 70 °C

Ø Comply with RoHS 2.0

3、Applications

Ø 10g Ethernet

Ø High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers

Ø Switched fabric I/O such as ultra high bandwidth switches and routers

Ø Data center cabling infrastructure

Ø High density connections between networking equipment
